On the WiFi WAN Connection screen, you can configure the settings for the WiFi WAN interface of your Ewon device.

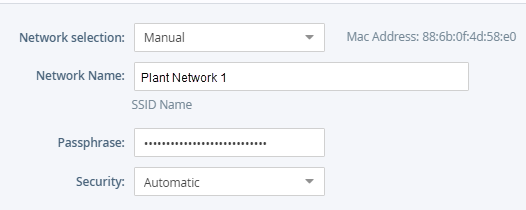

In the WiFI setup section, select your WiFi network from the dropdown Network name list.

Enter the passphrase required to connect to this WiFi network in the Passphrase field.

If you do not see your network there, you can change the Network selection option to Manual and enter the Network name in the appropriate field.

You can configure the network address settings for your WiFI WAN interface in the WiFi WAN connection and DNS Setup sections.

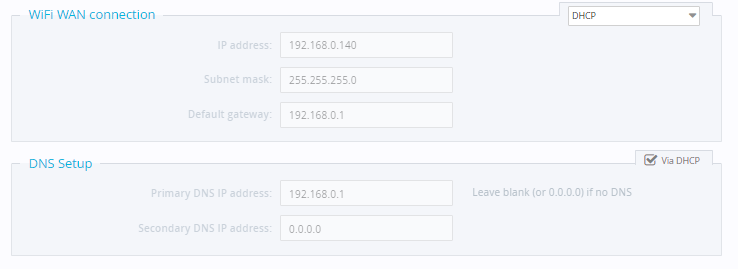

If your network supports assigning addresses automatically by DHCP, set the dropdown menu in the Address Setup section to DHCP.

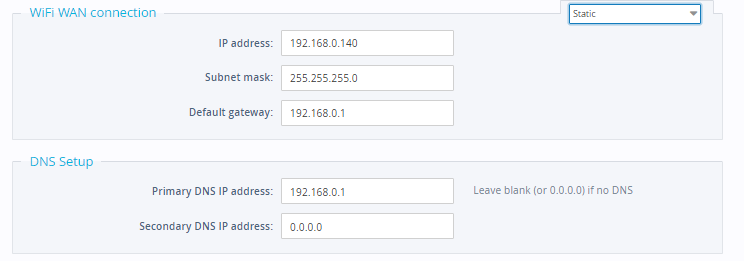

If your network requires a static address, select Static from the dropdown menu and enter the network settings provided by your network administrator.

Click the Next button to proceed to the next section of the Wizard.
