M2web Online Help

How to customize the M2web interface ?

In addition to the different M2web default views, there are also several possibilities to customize your M2web Interface.

  • Favorite Views

  • Custom Cards

  • Profile Name

  1. Favorite Views:

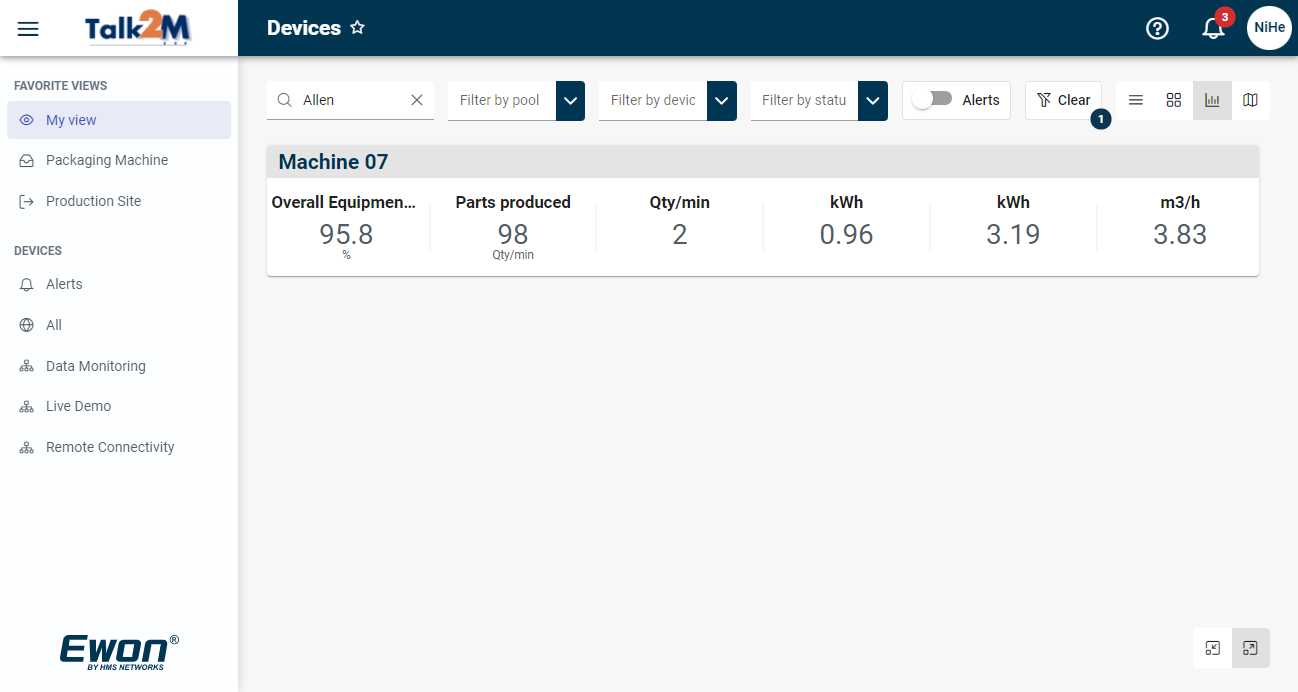

    Instead of searching every time for the right Ewon in your device list, it is possible to create a favorite view based on the current search.

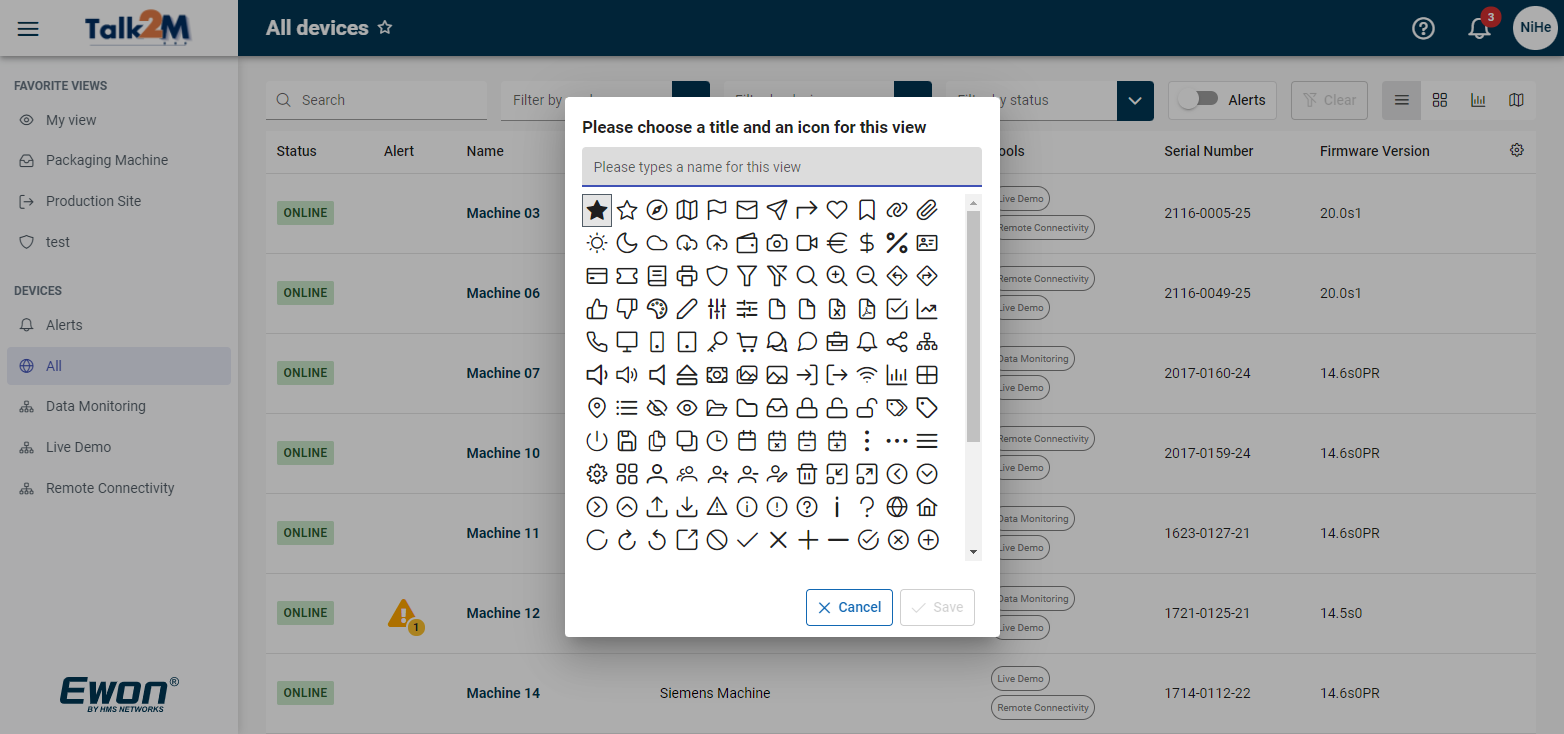

    1. Click on the Star icon (next to "All Devices" in the top menu bar) to add a name.

    2. Then select a preferred icon for this view.


      Warning

      This preference is saved and powered by your web browser.

      Clearing the cache of your web browser will remove this setting and reset all views.

  2. Custom Cards:

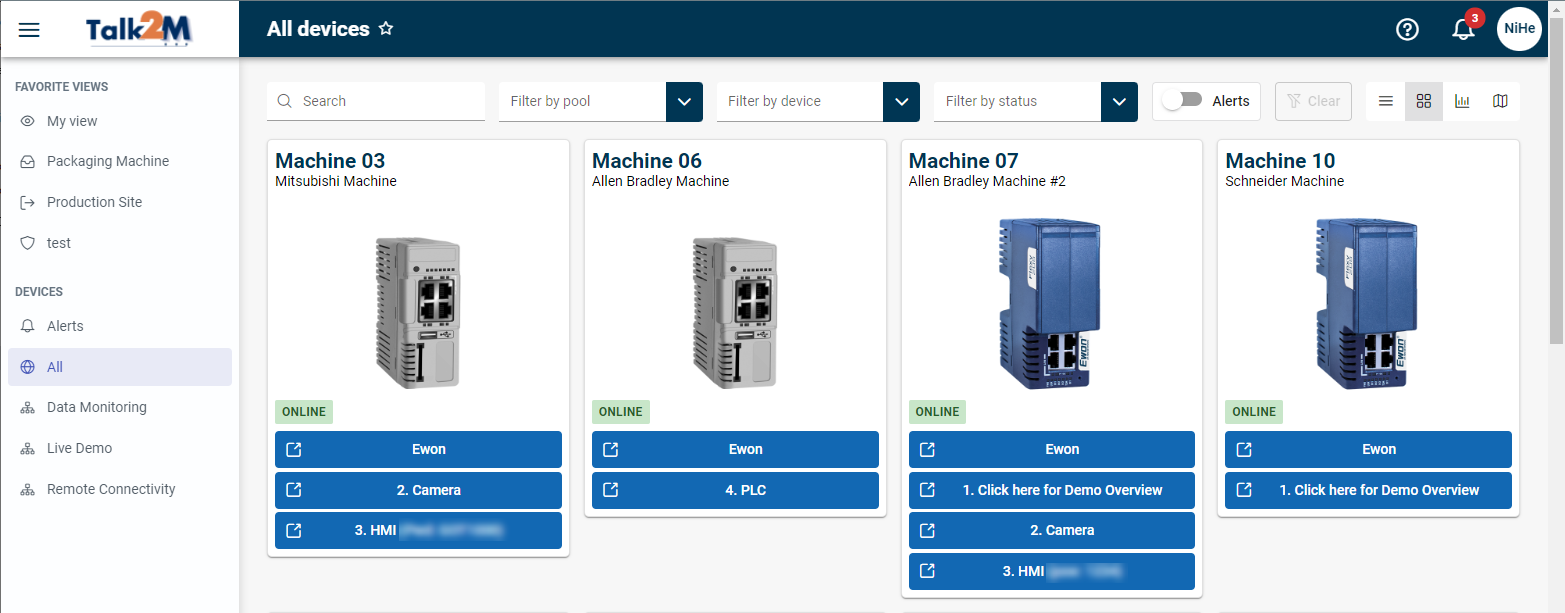

    The M2web Card view can display quick links to devices connected behind the Ewon.

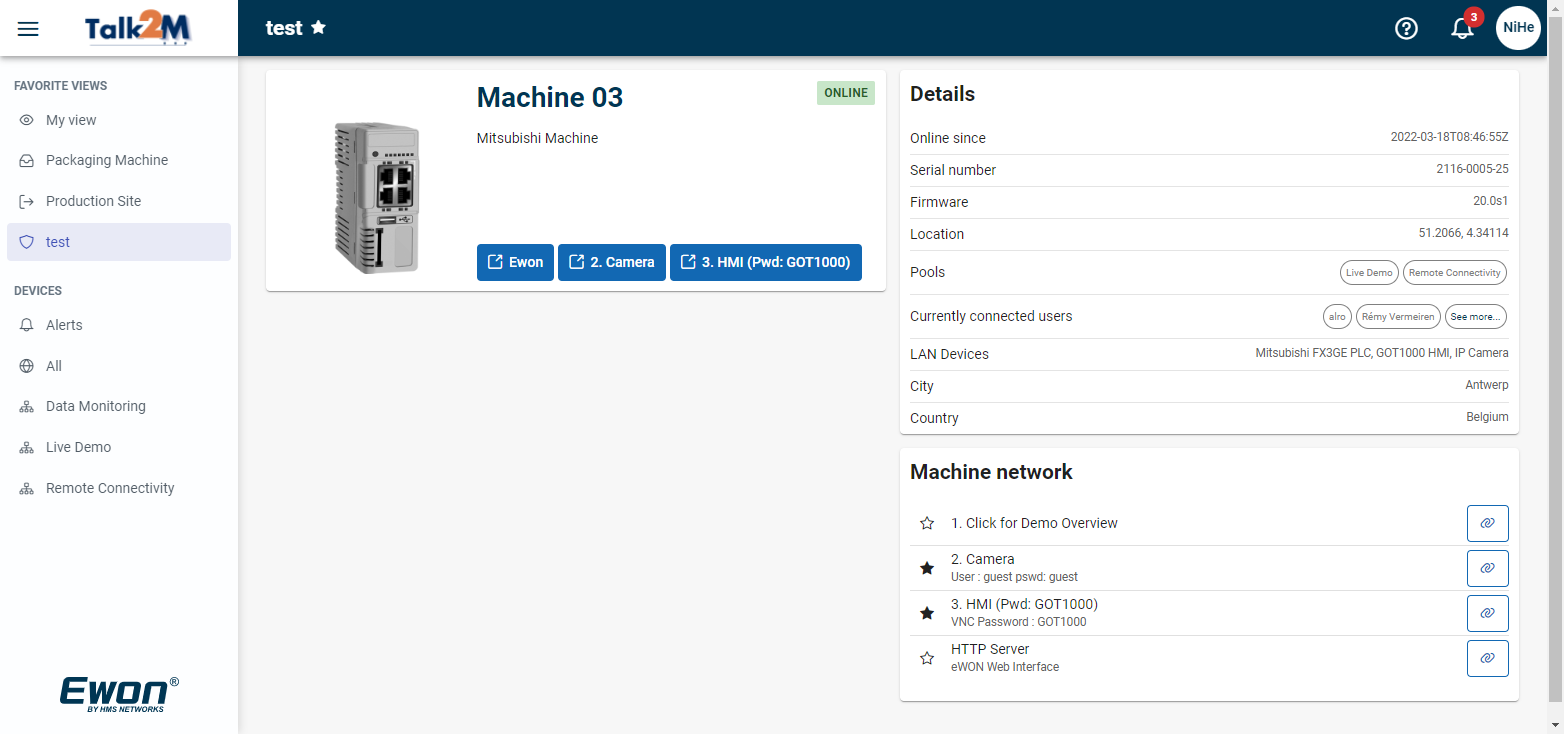

    1. By clicking on the Ewon Card, you can select the devices to display for this Ewon in the M2web Card view.

    2. Select up to 3 items to display by clicking on the Star icon in the Machine Network section.


      Warning

      This preference is saved and powered by your web browser.

      Clearing the cache of your web browser will remove this setting and reset all views.

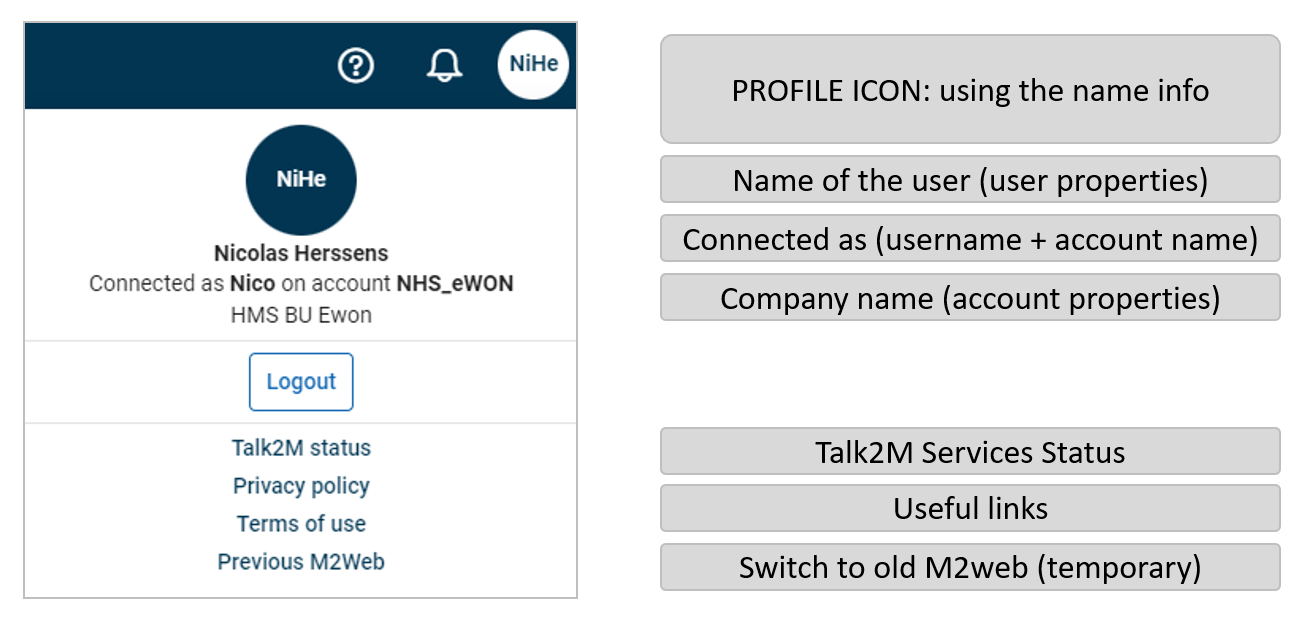

  3. Profile Name:

    The profile name can be adapted using Ecatcher and will be displayed on the profile icon and summary.

    1. Inside Ecatcher, edit the properties of the user to add a name that will be used to customize the profile icon.

    2. Other user details can be displayed inside the profile section too.
