Content

Abstract

Here are the i4designer Content components for your new project allowing you to insert various contents to your projects.

The upcoming article describes the Panel and Frames components in the Content category.

Panel
Abstract

Check out this article in order to learn more details about the i4designer Panel component and the properties it provides.

The i4designer Panel component is a simple configurable content container, providing the user with the possibility to easily create tables and insert header/ footer areas.

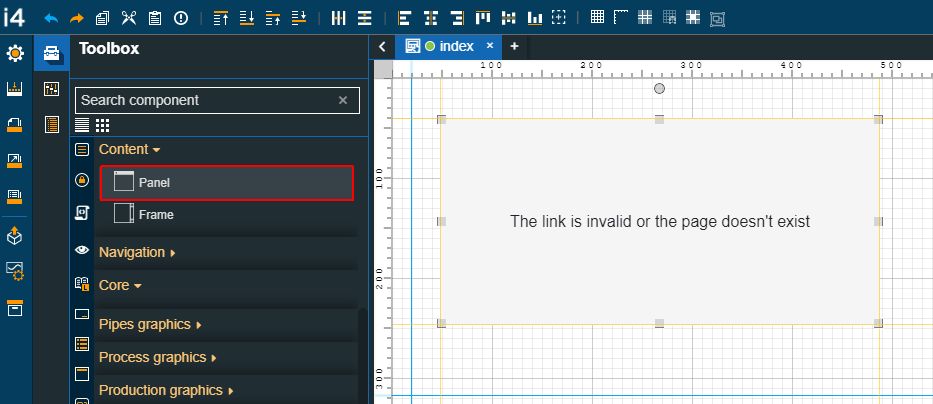

The Panel component

Category

Property

Description

Common

Name

The name of the component, visible in other Designer locations (such as Page explorer).


Object ID

Sets the Object ID of the component. By defining an object ID for the control, it can be passed as SignalPrefix when using parameter passing in navigation. The value of the Object ID can be used via a placeholder [OID] in other properties of this extension. The placeholder is supported in all signal properties, symbolic text, and states.

Example: Setpoint [OID]


Tooltip text

Optional tooltip text, that will be shown on mouseover at runtime.


Security

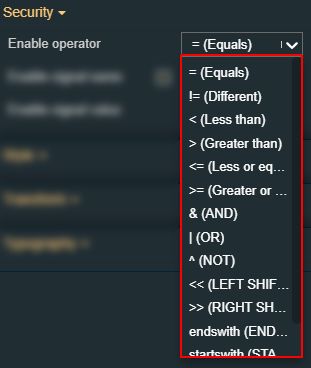

Enable operator

Sets the logical operator that checks the condition which will enable/disable the component. As the logical operator needs to be manually inserted, the below list illustrates the logical operators that can be used:

  • = (Equals)

  • != (Different)

  • < (Less than)

  • > (Greater than)

  • <= (Less or equal)

  • >= (Greater or equal)

  • & (AND)

  • | (OR)

  • ^ (NOT)

  • << (Left shift)

  • >> (Right shift)

  • endswith (Ends with)

  • startswith (Starts with)

  • contains (Contains)

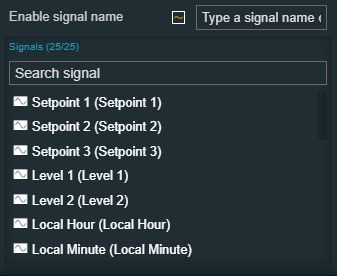

Enable signal name

Sets the signal name of the condition that will enable/disable the component.


Enable signal value

Sets the signal value of the condition that will enable/disable the component.


System authorizations / Permissions

The system authorization is required to display the component.

If the logged-in user does not have this system authorization, the component will not be visible or enabled (depending on the set Security access behavior).

If the property is left empty, the component will be visible and enabled for all users.

This property is named "System authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Project authorizations / Roles

The project authorization required for displaying the component. If the logged in user does not have this project authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled to all users. Further on, the user can also add multiple Project authorizations / Roles, separated by comma (,).

This property is named "Project authorization" for projects created on i4scada platform.


This property is named "Role" for projects created on i4connected platform.


Security access authorization

Sets the behavior of the element to either disabled (grayed out) or hidden, when the logged in user doesn't meet the conditions imposed by the Project authorization / Roles and System authorization / Permissions properties. In case both Project authorization / Roles and System authorization / Permissions properties are set, the logged user needs to meet both conditions to be able to see and utilize the component, at run-time.


Visibility operator

Sets the logical operator that checks the condition which will enable/disable the component visibility. As the logical operator needs to be manually inserted, the below list illustrates the logical operators that can be used:

  • = (Equals)

  • != (Different)

  • < (Less than)

  • > (Greater than)

  • <= (Less or equal)

  • >= (Greater or equal)

  • & (AND)

  • | (OR)

  • ^ (NOT)

  • << (Left shift)

  • >> (Right shift)

  • endswith (Ends with)

  • startswith (Starts with)

  • contains (Contains)

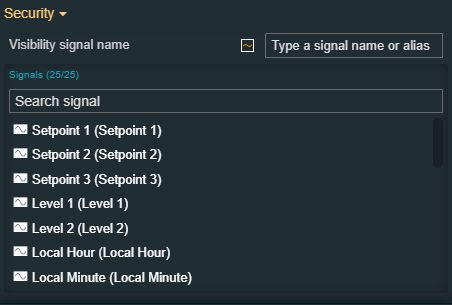

Visibility signal name

Sets the signal name of the condition that will enable/disable the component visibility.


Visibility signal value

Sets the signal value of the condition that will enable/disable the component visibility.


Layout

Layout mode

Sets the behavior of the component related to the page placement. The user can select the component layout from the options available in the drop-down list: Default, Dock top, Dock bottom, Dock left, Dock right, Stretched, Pin top left, Pin top center, Pin top right, Pin right middle, Pin bottom right, Pin bottom center, Pin bottom left, Pin left middle and Pin center.


Margin

Sets the margin of the component relative to the drawing board area. The supported values are the standard CSS values for the margin.

Sets the margin of the component relative to the drawing board area. The supported values are the standard CSS values for the margin.


The Margin editor can be opened by clicking the Open button.


The components margins can be updated by setting the margin value and selecting the desired unit:

  • Ems (em) - The em is a scalable unit. One em is equal to the current font size;

  • Pixels (px) - Pixels are fixed-size units. One pixel is equal to one dot on the computer screen (the smallest division of a screen’s resolution).

  • Percent (%) - The percent unit is much like the “em” unit. When using the Percent unit the component remains fully scalable for mobile devices and accessibility.

Effects

Opacity

Sets the opacity of the component. The Opacity values should be numbers from 0 to 1 representing the opacity of the component. When the component has a value of 0 the element is completely invisible; a value of 1 is completely opaque (solid).

By default, the Component's opacity is set to value 1. Using the up / down arrows the user can control the opacity degree.


By clicking the Open button the view is extended to display the Opacity slider.


Shadow color

Sets the color of the component shadow, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Shadow offset X

Sets the offset of the shadow on the horizontal axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow offset Y

Sets the offset of the shadow on the vertical axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow size

Sets the width of the component shadow. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Navigation

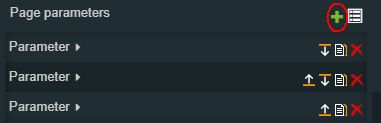

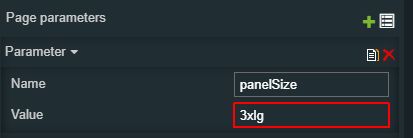

Navigation parameters

Allows possibility to add additional parameters for the navigation, by clicking the Add new item button.


In order to see the list of items, the user can click on the Expand array list button.


Furthermore, the following actions are available for each item:

  • Move up move_up.jpg

  • Move down move_down.jpg

  • Clone Clone_param.jpg

  • Remove item remove_state.jpg

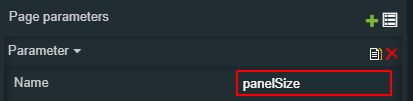

Write item# Parameter name

Defines the name of the parameter(s) that will be passed to the source page (e.g. "panelSize").


Write item# Value

Defines the value of the inserted parameter(s) that will be passed to the source page (e.g. - when passing the size of the panel - sm, md, lg, xlg, xxlg, 3xlg, 6xlg).

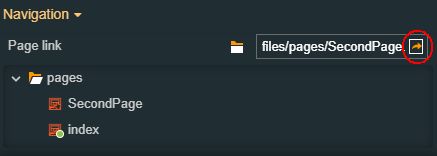

Internal page link

The internal path towards a project page, that will be displayed at run time, within the panel component. For an easier management of the project pages, the "Navigate to page" button allows the user to open a tab showing the linked page.


The Panel component cannot render a page inside itself, as this will cause circular rendering issues. Using external links for the panel component is also not permitted.

Warning

In case the Internal linked page is at some moment in time removed or becomes invalid, the component will show this information: "The link is invalid or the page doesn't exist."

Palette

Background color

Sets the background color of the component. The user can either manually type in the HEX color code or use the color picker tool. Applying this property will overwrite the default CSS class.


Border color

Sets the color of the component border. The user can either manually type in the HEX color code or use the color picker tool. Applying this property will overwrite the default CSS class.


Header background

Sets the background color of the panel header. The user can either manually type in the HEX color code or use the color picker tool. Applying this property will overwrite the default CSS class.

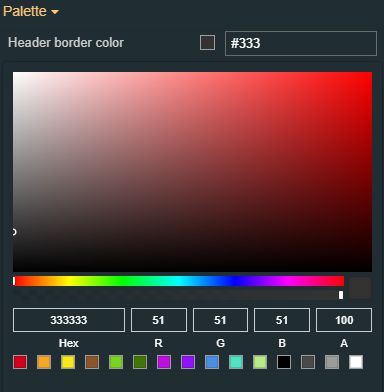

Header border color

Sets the color of the panel header bottom border. The user can either manually type in the HEX color code or use the color picker tool. Applying this property will overwrite the default CSS class.


Header foreground

Sets the color of the panel header text. The user can either manually type in the HEX color code or use the color picker tool. Applying this property will overwrite the default CSS class.

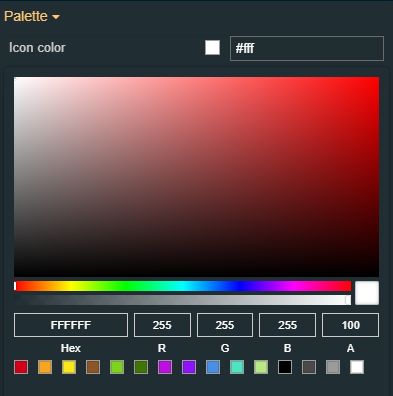

Icon color

Sets the color of the icon. The user can either manually type in the HEX color code or use the color picker tool. Applying this property will overwrite the default CSS class.

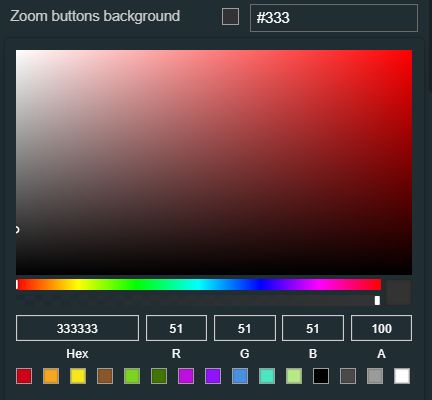

Zoom buttons background

Sets the background of the zoom buttons. The user can either manually type in the HEX color code or use the color picker tool. Applying this property will overwrite the default CSS class

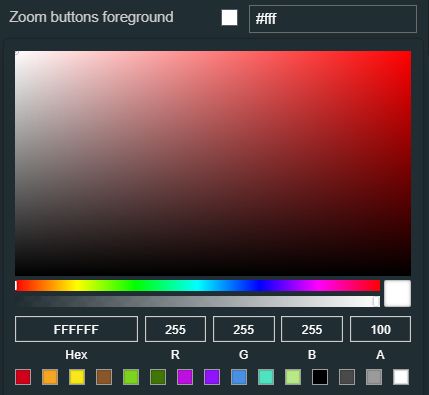

Zoom buttons foreground

Sets the foreground of the zoom buttons. The user can either manually type in the HEX color code or use the color picker tool. Applying this property will overwrite the default CSS class


Style

Border radius

Sets the curvature of the border corners expressed in pixels or percentages. The border-radius value can be either manually typed in the designated field or increased/decreased by clicking the up and down arrows.


Header style

Sets the style of the header, providing the user with a set of predefined options: Flat or Glossy.


Border width

Sets the width of the container border in pixels. The border width value can be either manually typed in the designated field or increased/decreased by clicking the up and down arrows.


The components border width can be updated by setting the values and the desired unit:

  • Ems (em) - The em is a scalable unit. One em is equal to the current font size.

  • Pixels (px) - Pixels are fixed-size units. One pixel is equal to one dot on the computer screen (the smallest division of a screen’s resolution).

  • Percent (%) - The percent unit is much like the “em” unit. When using the Percent unit the component remains fully scalable for mobile devices and accessibility.

Configuration

Content mode

Sets the mode in which the content of the frame is displayed, allowing the user to select from the drop-down list options: default, stretched, horizontal flexbox, vertical flexbox.


Display zoom buttons

Sets whether or not the user should use the zoom buttons or the mouse. This property will be taken into consideration only if the “Is zoomable” property is set to True


Header title

Sets the text of the header title.


Is zoomable

Sets whether or not the panel content can be zoomed/panned/dragged/pinched


Printable

Shows the print icon on the component header. Only internal pages/ documents can be printed. External pages are not supported.

By default, the property is set to value “False”. By enabling it, the Print icon will be made visible at both design-time, and run-time, allowing the user to print the contents of the panel.


Appearance

Header height

Sets the height of the panel header, using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.


Header text alignment

Sets the panel header text alignment selecting from the drop-down list options: left, right or center.


Show header

Allows the user to toggle the visibility of the panel header.


Typography

Font family

Sets the font family of the component, by selecting from the drop-down list options:


Header font size

Sets the header font size, using the up and down arrows to increase and decrease, or by manually typing the desired value.


Header font-weight

Sets the header font weight, selecting from the drop-down list options: 900 (fat), 800 (extra-bold), 700 (bold), 600 (semi-bold), 500 (medium), 400 (normal), 300 (light), 200 (extra-light) and 100 (thin).


Icon

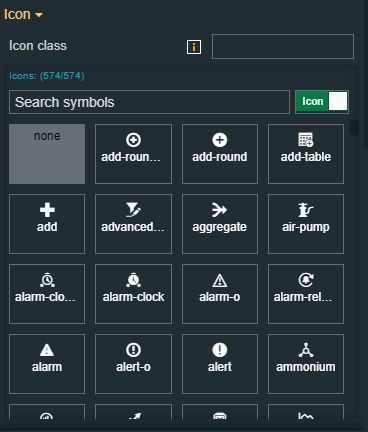

Icon class

Sets the CSS class for the icon of the component.

The icon can be selected from a large number of icons accessible by clicking the Open panel to see the icon list button.

The list of icons allows the user to toggle between actual icons and icon names. A simple filtering mechanism is also provided to support the user to easily pinpoint the desired icon.


Miscellaneous

Overflow

Sets the display of the content that exceeds the panel container at run-time, allowing the user to select from the drop-down list options: hidden, visible, or auto.


Transform

Width

Sets the width of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component width can also be adjusted directly on the design surface by means of mouse manipulation.


Height

Sets the height of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component height can also be adjusted directly on the design surface by means of mouse manipulation.


Angle

Sets the rotation angle using the up and down arrows to increase and decrease, or by manually typing the desired degree value.

The component angle can also be adjusted directly on the design surface by means of mouse manipulation.


Left

Specifies the X (horizontal) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component X coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Top

Specifies the Y (vertical) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component Y coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Disable flip

Disables any flip transformation for this component. This keeps the component in the default position even when its container is flipped.


Horizontal flip

Flips the selected component horizontally.


Vertical flip

Flips the selected component vertically.

Frame
Abstract

Check out this article in order to learn more details about the particularities involved by the Frame component and what you can do with it.

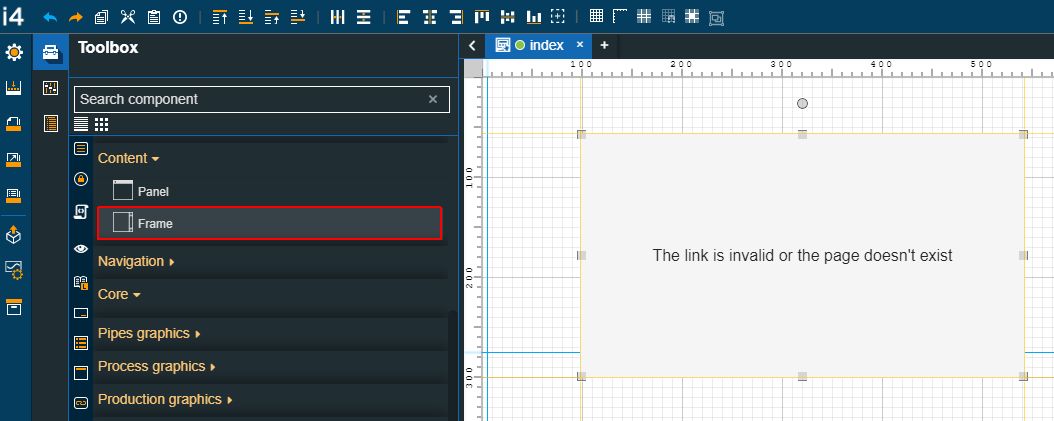

The i4designer Frame component allows the user the possibility to insert external or internal navigation links. This component can be used to integrate certain external functionality, that otherwise is not provided by the i4designer application.


The Frame component

Tip

For a step-based tutorial describing how to link and i4scada visualization page, showing an i4BACnet project, and publish it to an i4connected environment, please visit the dedicated tutorial, here.

Category

Property

Description

Common

Name

The name of the component, visible in other Designer locations (such as Page explorer).


Object ID

Sets the Object ID of the component. By defining an object ID for the control, it can be passed as SignalPrefix when using parameter passing in navigation. The value of the Object ID can be used via a placeholder [OID] in other properties of this extension. The placeholder is supported in all signal properties, symbolic texts, and states.

Example: Setpoint [OID]


Tooltip text

Optional tooltip text, that will be shown on mouseover at runtime.


Security

Enable operator

Sets the logical operator that checks the condition which will enable/disable the component. As the logical operator needs to be manually inserted, the below list illustrates the logical operators that can be used:

  • = (Equals)

  • != (Different)

  • < (Less than)

  • > (Greater than)

  • <= (Less or equal)

  • >= (Greater or equal)

  • & (AND)

  • | (OR)

  • ^ (NOT)

  • << (Left shift)

  • >> (Right shift)

  • endswith (Ends with)

  • startswith (Starts with)

  • contains (Contains)

Enable signal name

Sets the signal name of the condition that will enable/disable the component.


Enable signal value

Sets the signal value of the condition that will enable/disable the component.


System authorizations/ Permissions

The system authorization required to display the component. If the logged in user does not have this system authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled for all users. Further on, the user can also add multiple System authorizations / Permissions, separated by comma (,).

This property is named "System authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Project authorizations / Roles

The project authorization required for displaying the component. If the logged in user does not have this project authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled to all users. Further on, the user can also add multiple Project authorizations / Roles, separated by comma (,).

This property is named "Project authorization" for projects created on i4scada platform.


This property is named "Role" for projects created on i4connected platform.


Security access behavior

Sets the behavior of the element to either disabled (grayed out) or hidden, when the logged in user doesn't meet the conditions imposed by the Project authorization / Roles and System authorization / Permissions properties. In case both Project authorization / Roles and System authorization / Permissions properties are set, the logged user needs to meet both conditions to be able to see and utilize the component, at run-time.


Visibility operator

Sets the logical operator that checks the condition which will enable/disable the component visibility. As the logical operator needs to be manually inserted, the below list illustrates the logical operators that can be used:

  • = (Equals)

  • != (Different)

  • < (Less than)

  • > (Greater than)

  • <= (Less or equal)

  • >= (Greater or equal)

  • & (AND)

  • | (OR)

  • ^ (NOT)

  • << (Left shift)

  • >> (Right shift)

  • endswith (Ends with)

  • startswith (Starts with)

  • contains (Contains)


Visibility signal name

Sets the signal name of the condition that will enable/disable the component visibility.


Visibility signal value

Sets the signal value of the condition that will enable/disable the component visibility.


Layout

Layout mode

Sets the behavior of the component related to the page placement. The user can select the component layout from the options available in the drop-down list: Default, Dock top, Dock bottom, Dock left, Dock right, Stretched, Pin top left, Pin top center, Pin top right, Pin right middle, Pin bottom right, Pin bottom center, Pin bottom left, Pin left middle and Pin center.


Margin

Sets the margin of the component relative to the drawing board area. The supported values are the standard CSS values for the margin.

The top, bottom, left and right values can either be typed in the main property field or by using the Margin editor.


The Margin editor can be opened by clicking the Open button.


The components margins can be updated by setting the margin value and selecting the desired unit:

  • Ems (em) - The em is a scalable unit. One em is equal to the current font size;

  • Pixels (px) - Pixels are fixed-size units. One pixel is equal to one dot on the computer screen (the smallest division of a screen’s resolution).

  • Percent (%) - The percent unit is much like the “em” unit. When using the Percent unit the component remains fully scalable for mobile devices and accessibility.

Effects

Opacity

Sets the opacity of the component. The Opacity values should be numbers from 0 to 1 representing the opacity of the component. When the component has a value of 0 the element is completely invisible; a value of 1 is completely opaque (solid).

By default, the Component's opacity is set to value 1. Using the up / down arrows the user can control the opacity degree.


By clicking the Open button the view is extended to display the Opacity slider.


Shadow color

Sets the color of the component's shadow. The user can either manually type in the HEX color code or use the color picker tool.


Shadow offset X

Sets the offset of the shadow on the horizontal axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow offset Y

Sets the offset of the shadow on the vertical axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow size

Sets the width of the component shadow. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Navigation

Is external

Allows the possibility to set the link target to internal or external.

If the property is set to False, a current project page can be set as a target. The user can select the project page for the Link property or manually type in the path pointing to it.


If the property is set to True, the user can manually fill in the target URL, to the Link property.


Page link

Sets the URL of the external or internal page, displayed at run-time within the Frame component.


For easier management of the project pages, the "Navigate to page" button allows the user to open a tab showing the linked page.

Page parameters

Allows the possibility to add additional parameters for the navigation, by clicking the Add new item button.


In order to see the list of items, the user can click on the Expand array list button.


Furthermore, the following actions are available for each item:

  • Move up move_up.jpg

  • Move down move_down.jpg

  • Clone Clone_param.jpg

  • Remove item remove_state.jpg

Write item# Name

Defines the name of the parameter(s) that will be passed to the source page (e.g. "panelSize").


Write item# Value

Defines the value of the inserted parameter(s) that will be passed to the source page (e.g. - when passing the size of the panel - sm, md, lg, xlg, xxlg, 3xlg, 6xlg).


Palette

Background color

Sets the background color of the menu component. The user can either manually type in the HEX color code or use the color picker tool.

As the color palette is injected into this component by means of the default CSS class, applying this property the CSS class settings will be overwritten.


Border color

Sets the color of the component border. The user can either manually type in the HEX color code or use the color picker tool.

As the color palette is injected into this component by means of the default CSS class, applying this property the CSS class settings will be overwritten.


Zoom buttons background

Sets the background of the zoom buttons. The user can either manually type in the HEX color code or use the color picker tool. Applying this property will overwrite the default CSS class


Zoom buttons foreground

Sets the foreground of the zoom buttons. The user can either manually type in the HEX color code or use the color picker tool. Applying this property will overwrite the default CSS class


Style

Border width

Sets the width of the component's container. The value is specified in pixels.


The top, bottom, left and right values can either be typed in the main property field or by using the Border width editor.

The Border width editor can be opened by clicking the Open button.


The components border width can be updated by setting the desired values and selecting the unit:

  • Ems (em) - The em is a scalable unit. One em is equal to the current font size;

  • Pixels (px) - Pixels are fixed-size units. One pixel is equal to one dot on the computer screen (the smallest division of a screen’s resolution).

  • Percent (%) - The percent unit is much like the “em” unit. When using the Percent unit the component remains fully scalable for mobile devices and accessibility.

Border radius

Sets the curvature of the border corners expressed in pixels or percentages. The border-radius value can be either manually typed in the designated field or increased/decreased by clicking the up and down arrows.


Header style

Sets the style of the header, providing the user with a set of predefined options: Flat or Glossy.


Configuration

Content mode

Sets the mode in which the content of the frame is displayed, allowing the user to select from the drop-down list options: default, stretched, horizontal flexbox, vertical flexbox.


Display zoom buttons

Sets whether or not the user should use the zoom buttons or the mouse. This property will be taken into consideration only if the “Is zoomable” property is set to True


Header title

Sets the text of the header title


Is zoomable

Sets whether or not the panel content can be zoomed/panned/dragged/pinched.


Note

This functionality is exclusively dedicated to Frames that are linked to an internal project page. External pages don’t provide Zoom capabilities

Printable

Shows the print icon on the component header. Only internal pages/documents can be printed. External pages are not supported.

By default, the property is set to value “False”. By enabling it, the Print icon will be made visible at both design-time, and run-time, allowing the user to print the contents of the panel.


Warning

The Printable function is available only for internal pages. If Is external is set up to True, you will not be able to print your project.

Appearance

Header height

Sets the height of the panel header, using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.


Header text alignment

Sets the panel header text alignment selecting from the drop-down list options: left, right or center


Show header

Allows the user to toggle the visibility of the panel header


Typography

Font family

Sets the font family of the component, by selecting from the drop-down list options:


Header font size

Sets the header font size, using the up and down arrows to increase and decrease, or by manually typing the desired value


Header font-weight

Sets the header font weight, selecting from the drop-down list options: 900 (fat), 800 (extra-bold), 700 (bold), 600 (semi-bold), 500 (medium), 400 (normal), 300 (light), 200 (extra-light) and 100 (thin)


Icon

Icon class

Sets the CSS class for the icon of the component.

The icon can be selected from a large number of icons accessible by clicking the Open panel to see the icon list button.

The list of icons allows the user to toggle between actual icons and icon names. A simple filtering mechanism is also provided to support the user to easily pinpoint the desired icon.


Miscellaneous

Overflow

Sets the display of the content that exceeds the panel container at run-time, allowing the user to select from the drop-down list options: hidden, visible, or auto


Transform

Width

Sets the width of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component width can also be adjusted directly on the design surface by means of mouse manipulation


Height

Sets the height of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component height can also be adjusted directly on the design surface by means of mouse manipulation.


Angle

Sets the rotation angle using the up and down arrows to increase and decrease, or by manually typing the desired degree value.

The component angle can also be adjusted directly on the design surface by means of mouse manipulation


Left

Specifies the X (horizontal) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component X coordinate can also be adjusted directly on the design surface by means of mouse manipulation


Top

Specifies the Y (vertical) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component Y coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Disable flip

Disables any flip transformation for this component. This keeps the component in the default position even when its container is flipped


Horizontal flip

Flips the selected component horizontally


Vertical flip

Flips the selected component vertically
