Pipes graphics

Abstract

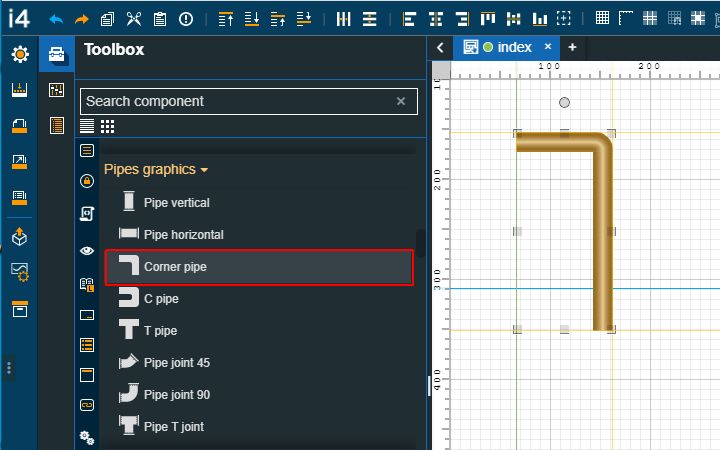

Here are the i4designer Pipes graphics components for your new project created on the i4scada platform.

In order to create their own industrial conduit the i4designer platform provides the users with a set of pipelines, available under the Pipes graphics components. More details about each pipe component can be found in the upcoming articles.

Pipe vertical
Abstract

Check out this article to learn more details about the i4designer Pipe vertical component and the properties featured for it.

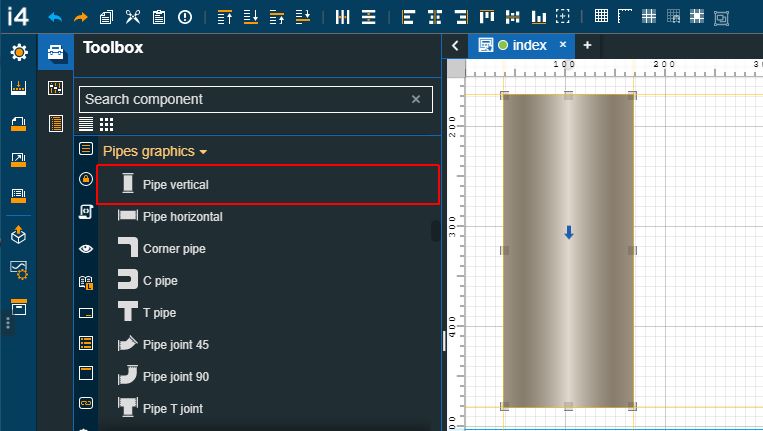

The i4designer Pipe vertical is an SVG graphic component capable to display multiple states based on different signals.


The Pipe vertical component

Category

Property

Description

Common

Name

The name of the component, visible in other Designer locations (such as Page explorer).


Object ID

Sets the Object ID of the component. By defining an object ID for the control, it can be passed as SignalPrefix when using parameter passing in navigation. The value of the Object ID can be used via a placeholder [OID] in other properties of this extension. The placeholder is supported in all signal properties, symbolic text, and states.

Example: Setpoint [OID]


Tooltip text

Optional tooltip text, that will be shown on mouseover at runtime.


Security

System authorization / Permission

The system authorization required to display the component. If the logged in user does not have this system authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled for all users. Further on, the user can also add multiple System authorizations / Permissions, separated by comma (,).

This property is named "System authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Project authorization / Role

The project authorization required for displaying the component. If the logged in user does not have this project authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled to all users. Further on, the user can also add multiple Project authorizations / Roles, separated by comma (,).

This property is named "Project authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Security access behavior

Sets the behavior of the element to either disabled (grayed out) or hidden, when the logged in user doesn't meet the conditions imposed by the Project authorization / Roles and System authorization / Permissions properties. In case both Project authorization / Roles and System authorization / Permissions properties are set, the logged user needs to meet both conditions to be able to see and utilize the component, at run-time.


Layout

Layout mode

Sets the behavior of the component related to the page placement. The user can select the component layout from the options available in the drop-down list: Default, Dock top, Dock bottom, Dock left, Dock right, Stretched, Pin top left, Pin top center, Pin top right, Pin right middle, Pin bottom right, Pin bottom center, Pin bottom left, Pin left middle and Pin center.


Margin

Sets the margin of the component relative to the drawing board area. The supported values are the standard CSS values for the margin.

The top, bottom, left and right values can either be typed in the main property field or by using the Margin editor.


The Margin editor can be opened by clicking the Open button.


The components margins can be updated by setting the margin value and selecting the desired unit:

  • Ems (em) - The em is a scalable unit. One em is equal to the current font size;

  • Pixels (px) - Pixels are fixed-size units. One pixel is equal to one dot on the computer screen (the smallest division of a screen’s resolution).

  • Percent (%) - The percent unit is much like the “em” unit. When using the Percent unit the component remains fully scalable for mobile devices and accessibility.

Configuration

Dialog header title

Allows the user to set the text of the dialog header title


Draggable

Sets the capability to drag the component if the Page behavior property is set to Modal. Popover page behavior does not work on draggable mode. By default, the property is set to False.


Page behavior

Sets the runtime behavior of the component, allowing the user to choose between Modal (modal dialog) and Popover (contextual dialog).


Effects

Opacity

Sets the opacity of the component. The Opacity values should be numbers from 0 to 1 representing the opacity of the component. When the component has a value of 0 the element is completely invisible; a value of 1 is completely opaque (solid).

By default, the Component's opacity is set to value 1. Using the up /down arrows the user can control the opacity degree.


By clicking the Open button the view is extended to display the Opacity slider.


Shadow color

Sets the color of the component's shadow. The user can either manually type in the HEX color code or use the color picker tool.


Shadow offset X

Sets the offset of the shadow on the horizontal axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow offset Y

Sets the offset of the shadow on the vertical axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow size

Sets the width of the component shadow. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Navigation

Is external

Allows the possibility to set the link target to internal or external.

If the property is set to False, a current project page can be set as a target. The user can select the project page for the Link property or manually type in the path pointing to it.


Page parameters

Allows the possibility to add additional parameters for the navigation, by clicking the Add new item button.


In order to see the list of items, the user can click on the Expand array list button.


Furthermore, the following actions are available for each item:

  • Move up Move_up.jpg

  • Move down Move_down.jpg

  • Clone Clone.jpg

  • Remove item Remove.jpg

Page url

Sets the URL of the external or internal page, displayed at run-time within the Pipe vertical component. In case of an external URL, please make sure that the targeted website is either a locally hosted website or that the link is embeddable.


Palette

Background color

Sets the color of the component background, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Flow indicator color

Sets the color of the flow indicator, either by manually typing in the HEX color code or by using the color picker tool. Applying this property will overwrite the default CSS class.

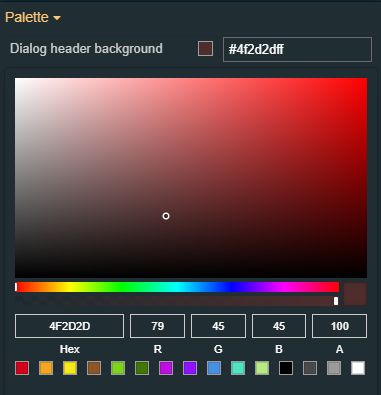

Dialog header background

Sets the background of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS


Dialog header foreground

Sets the foreground of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS


Appearance

Animation duration

Sets the animation duration, expressed in seconds, using the up and down arrows to increase and decrease, or by manually typing the desired pixel value.


Dialog height

Sets the height of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Dialog width

Sets the width of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Display flow indicator

Sets the visibility of the flow indicator, by toggling the True / False button. If the flow indicator is enabled, the flow direction will be indicated by the component.

By default, the property is set to False.


Flat

Enables the possibility to remove additional visual elements or gloss from the component, if the property is set to True.

By default, the property is set to False.


Flow direction

Sets the direction of the flow indicator. The flow direction can be selected by choosing from the drop-down list values: down or up.


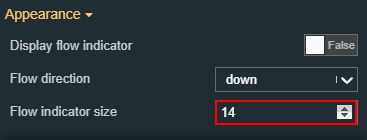

Flow indicator size

Sets the flow indicator size, expressed in pixels, using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.


Preferred popover position

Sets the positioning of the Pipe vertical popover panel. The position can be selected from the drop-down list options: (default), top, left, and right.


States

Current States

A component can have multiple states, each carrying its own set of properties. The user can add states, by clicking the Add new state button.


Furthermore, the following actions are available for each state:

  • Move up move_up.jpg

  • Move down move_down.jpg

  • Clone state clone_state.jpg

  • Remove state remove_state.jpg

State Name

By setting the Name property, the respective state will inherit that name, making the States easier to read.


State# Condition rule

The required rule for the extension to enter the state. The signal names must be always surrounded by percentage (%) characters, followed by logical operators and the Signal value.

For example: %Setpoint 1% != 0

The Condition rule can be either manually typed in or generated, using the State editor. The State editor can be opened by clicking the Expand array list button. This way, the user can easily generate a Condition rule, as follows:

  • Signal name - allows the user to select a Signal name for the Condition rule.

  • Comparator - allows the user to select the logical operator to construct the Condition rule.

  • Signal value - allows the user to add the Signal value, used to trigger the state condition.


State# CSS class name

Sets the behavior of the element when the logged-in user doesn't belong to the project authorization indicated by the projectAuthorization property. In this case, the element can be either disabled or hidden.


State# Symbolic text

The language-agnostic text (which is automatically translated) is displayed by the extension.


State# Display state

Sets the component visibility and accessibility when the state evolution passed. The user can choose from the following options:

  • Normal - the component will be displayed when the state evolution passed.

  • Hidden - the component will be hidden when the state evolution passed.

  • Disabled - the component will be displayed as disabled when the state evolution passed.


State# Foreground

Sets the foreground color of the button. Applying this property will override the default CSS class.


State# Background

Sets the background color of the button. Applying this property will override the default CSS class.


State# Animation

Sets the component animation class when the state evolution passed. The user can select the animation class from the drop-down list options: Fade in, Fade out or Blink.


Load from assets

Lists the State assets defined under the Assets management page, of the global actions area.

A simple filtering mechanism is also provided to support the user to easily pinpoint the desired state asset.

After selecting an asset from the list view, the user can click the Load button to apply it.


Save to assets

Allows the user the possibility to save a state asset defined during the current session. In this view, the user can either click the Generate name button to set a name for the asset or type in the name in the designated field.

By clicking the Apply button, the new state asset will be made available for further management actions in the Assets management page, of the global actions area. Also, the asset can be reused for other Component states.


Transform

Width

Sets the width of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component width can also be adjusted directly on the design surface by means of mouse manipulation.


Height

Sets the height of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component height can also be adjusted directly on the design surface by means of mouse manipulation.


Angle

Sets the rotation angle using the up and down arrows to increase and decrease, or by manually typing the desired degree value.

The component angle can also be adjusted directly on the design surface by means of mouse manipulation.


Left

Specifies the X (horizontal) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component X coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Top

Specifies the Y (vertical) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component Y coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Disable flip

Disables any flip transformation for this component. This keeps the component in the default position even when its container is flipped.


Horizontal flip

Flips the selected component horizontally.


Vertical flip

Flips the selected component vertically.

Pipe horizontal
Abstract

Check out this article to learn more details about the i4designer Pipe horizontal component and the properties featured for it.

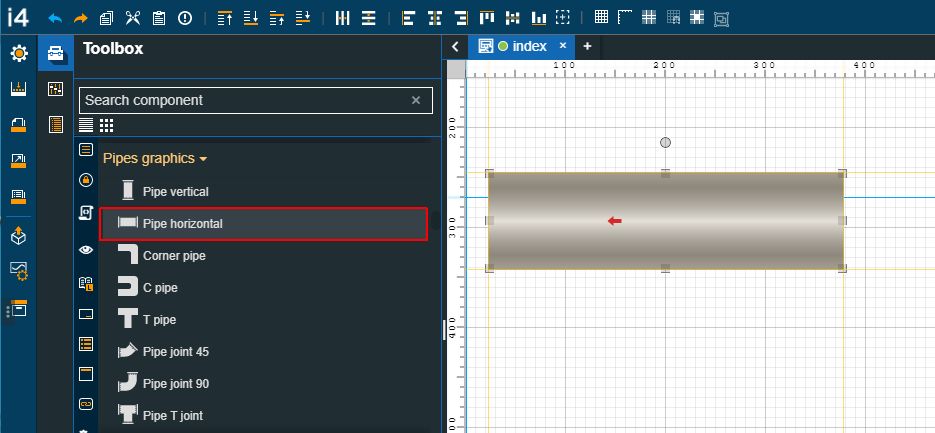

The i4designer Pipe horizontal is an SVG graphic component capable to display multiple states based on different signals.


The Pipe horizontal component

Category

Property

Description

Common

Name

The name of the component, visible in other Designer locations (such as Page explorer).


Object ID

Sets the Object ID of the component. By defining an object ID for the control, it can be passed as SignalPrefix when using parameter passing in navigation. The value of the Object ID can be used via a placeholder [OID] in other properties of this extension. The placeholder is supported in all signal properties, symbolic text, and states.

Example: Setpoint [OID]


Tooltip text

Optional tooltip text, that will be shown on mouseover at runtime.


Security

System authorization / Permission

The system authorization required to display the component. If the logged in user does not have this system authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled for all users. Further on, the user can also add multiple System authorizations / Permissions, separated by comma (,).

This property is named "System authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Project authorization / Role

The project authorization required for displaying the component. If the logged in user does not have this project authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled to all users. Further on, the user can also add multiple Project authorizations / Roles, separated by comma (,).

This property is named "Project authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Security access behavior

Sets the behavior of the element to either disabled (grayed out) or hidden, when the logged in user doesn't meet the conditions imposed by the Project authorization / Roles and System authorization / Permissions properties. In case both Project authorization / Roles and System authorization / Permissions properties are set, the logged user needs to meet both conditions to be able to see and utilize the component, at run-time.


Layout

Layout mode

Sets the behavior of the component related to the page placement. The user can select the component layout from the options available in the drop-down list: Default, Dock top, Dock bottom, Dock left, Dock right, Stretched, Pin top left, Pin top center, Pin top right, Pin right middle, Pin bottom right, Pin bottom center, Pin bottom left, Pin left middle and Pin center.


Margin

Sets the margin of the component relative to the drawing board area. The supported values are the standard CSS values for the margin.

The top, bottom, left and right values can either be typed in the main property field or by using the Margin editor.


The Margin editor can be opened by clicking the Open button.


The components margins can be updated by setting the margin value and selecting the desired unit:

  • Ems (em) - The em is a scalable unit. One em is equal to the current font size;

  • Pixels (px) - Pixels are fixed-size units. One pixel is equal to one dot on the computer screen (the smallest division of a screen’s resolution).

  • Percent (%) - The percent unit is much like the “em” unit. When using the Percent unit the component remains fully scalable for mobile devices and accessibility.

Configuration

Dialog header title

Allows the user to set the text of the dialog header title


Draggable

Sets the capability to drag the Pipe horizontal if the Page behavior property is set to Modal. Popover page behavior does not work on draggable mode. By default, the property is set to False.


Page behavior

Sets the runtime behavior of the pipe horizontal, allowing the user to choose between Modal (modal dialog) and Popover (contextual dialog).


Effects

Opacity

Sets the opacity of the component. The Opacity values should be numbers from 0 to 1 representing the opacity of the component. When the component has a value of 0 the element is completely invisible; a value of 1 is completely opaque (solid).

By default, the Component's opacity is set to value 1. Using the up /down arrows the user can control the opacity degree.


By clicking the Open button the view is extended to display the Opacity slider.


Shadow color

Sets the color of the component's shadow. The user can either manually type in the HEX color code or use the color picker tool.


Shadow offset X

Sets the offset of the shadow on the horizontal axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow offset Y

Sets the offset of the shadow on the vertical axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow size

Sets the width of the component shadow. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Navigation

Is external

Allows the possibility to set the link target to internal or external.

If the property is set to False, a current project page can be set as a target. The user can select the project page for the Link property or manually type in the path pointing to it.


Page parameters

Allows the possibility to add additional parameters for the navigation, by clicking the Add new item button.


In order to see the list of items, the user can click on the Expand array list button.


Furthermore, the following actions are available for each item:

  • Move up Move_up.jpg

  • Move down Move_down.jpg

  • Clone Clone.jpg

  • Remove item Remove.jpg

Page url

Sets the URL of the external or internal page, displayed at run-time within the Pipe vertical component. In case of an external URL, please make sure that the targeted website is either a locally hosted website or that the link is embeddable.


Palette

Background color

Sets the color of the component background, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Flow indicator color

Sets the color of the flow indicator, either by manually typing in the HEX color code or by using the color picker tool. Applying this property will overwrite the default CSS class.


Dialog header background

Sets the background of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.

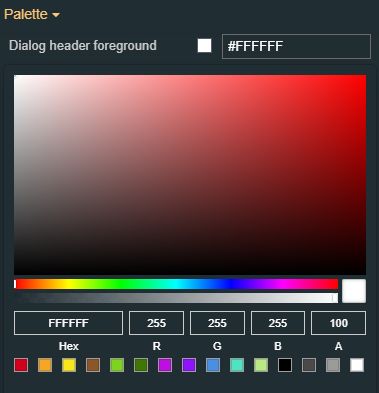

Dialog header foreground

Sets the foreground of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Appearance

Animation duration

Sets the animation duration, expressed in seconds, using the up and down arrows to increase and decrease, or by manually typing the desired pixel value.


Dialog height

Sets the height of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Dialog width

Sets the width of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Display flow indicator

Sets the visibility of the flow indicator, by toggling the True / False button. If the flow indicator is enabled, the flow direction will be indicated by the component.

By default, the property is set to False.


Flat

Enables the possibility to remove additional visual elements or gloss from the component, if the property is set to True.

By default, the property is set to False.


Flow direction

Sets the direction of the flow indicator. The flow direction can be selected by choosing from the drop-down list values: down or up.


Flow indicator size

Sets the flow indicator size, expressed in pixels, using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.


Preferred popover position

Sets the positioning of the Pipe vertical popover panel. The position can be selected from the drop-down list options: (default), top, left, and right.


States

Current States

A component can have multiple states, each carrying its own set of properties. The user can add states, by clicking the Add new state button.


Furthermore, the following actions are available for each state:

  • Move up move_up.jpg

  • Move down move_down.jpg

  • Clone state clone_state.jpg

  • Remove state remove_state.jpg

State Name

By setting the Name property, the respective state will inherit that name, making the States easier to read.


State# Condition rule

The required rule for the extension to enter the state. The signal names must be always surrounded by percentage (%) characters, followed by logical operators and the Signal value.

For example: %Setpoint 1% != 0

The Condition rule can be either manually typed in or generated, using the State editor. The State editor can be opened by clicking the Expand array list button. This way, the user can easily generate a Condition rule, as follows:

  • Signal name - allows the user to select a Signal name for the Condition rule.

  • Comparator - allows the user to select the logical operator to construct the Condition rule.

  • Signal value - allows the user to add the Signal value, used to trigger the state condition.


State# CSS class name

Sets the behavior of the element when the logged-in user doesn't belong to the project authorization indicated by the projectAuthorization property. In this case, the element can be either disabled or hidden.


State# Symbolic text

The language-agnostic text (which is automatically translated) is displayed by the extension.


State# Display state

Sets the component visibility and accessibility when the state evolution passed. The user can choose from the following options:

  • Normal - the component will be displayed when the state evolution passed.

  • Hidden - the component will be hidden when the state evolution passed.

  • Disabled - the component will be displayed as disabled when the state evolution passed.


State# Foreground

Sets the foreground color of the button. Applying this property will override the default CSS class.


State# Background

Sets the background color of the button. Applying this property will override the default CSS class.


State# Animation

Sets the component animation class when the state evolution passed. The user can select the animation class from the drop-down list options: Fade in, Fade out or Blink.


Load from assets

Lists the State assets defined under the Assets management page, of the global actions area.

A simple filtering mechanism is also provided to support the user to easily pinpoint the desired state asset.

After selecting an asset from the list view, the user can click the Load button to apply it.


Save to assets

Allows the user the possibility to save a state asset defined during the current session. In this view, the user can either click the Generate name button to set a name for the asset or type in the name in the designated field.

By clicking the Apply button, the new state asset will be made available for further management actions in the Assets management page, of the global actions area. Also, the asset can be reused for other Component states.


Transform

Width

Sets the width of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component width can also be adjusted directly on the design surface by means of mouse manipulation.


Height

Sets the height of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component height can also be adjusted directly on the design surface by means of mouse manipulation.


Angle

Sets the rotation angle using the up and down arrows to increase and decrease, or by manually typing the desired degree value.

The component angle can also be adjusted directly on the design surface by means of mouse manipulation.


Left

Specifies the X (horizontal) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component X coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Top

Specifies the Y (vertical) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component Y coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Disable flip

Disables any flip transformation for this component. This keeps the component in the default position even when its container is flipped.


Horizontal flip

Flips the selected component horizontally.


Vertical flip

Flips the selected component vertically.

Corner pipe
Abstract

Check out this article in order to learn more details about the i4designer Corner pipe component and the properties it features.

The i4designer Corner pipe is an SVG graphic component capable to display multiple states based on different signals.


The Corner pipe component

Category

Property

Description

Common

Name

The name of the component, visible in other Designer locations (such as Page explorer).


Object ID

Sets the Object ID of the component. By defining an object ID for the control, it can be passed as SignalPrefix when using parameter passing in navigation. The value of the Object ID can be used via a placeholder [OID] in other properties of this extension. The placeholder is supported in all signal properties, symbolic text, and states.

Example: Setpoint [OID]


Tooltip text

Optional tooltip text, that will be shown on mouseover at runtime.


Security

System authorization / Permission

The system authorization required to display the component. If the logged in user does not have this system authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled for all users. Further on, the user can also add multiple System authorizations / Permissions, separated by comma (,).

This property is named "System authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Project authorization / Role

The project authorization required for displaying the component. If the logged in user does not have this project authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled to all users. Further on, the user can also add multiple Project authorizations / Roles, separated by comma (,).

This property is named "Project authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Security access behavior

Sets the behavior of the element to either disabled (grayed out) or hidden, when the logged in user doesn't meet the conditions imposed by the Project authorization / Roles and System authorization / Permissions properties. In case both Project authorization / Roles and System authorization / Permissions properties are set, the logged user needs to meet both conditions to be able to see and utilize the component, at run-time.


Layout

Layout mode

Sets the behavior of the component related to the page placement. The user can select the component layout from the options available in the drop-down list: Default, Dock top, Dock bottom, Dock left, Dock right, Stretched, Pin top left, Pin top center, Pin top right, Pin right middle, Pin bottom right, Pin bottom center, Pin bottom left, Pin left middle and Pin center.


Margin

Sets the margin of the component relative to the drawing board area. The supported values are the standard CSS values for the margin.

The top, bottom, left and right values can either be typed in the main property field or by using the Margin editor.


The Margin editor can be opened by clicking the Open button.


The components margins can be updated by setting the margin value and selecting the desired unit:

  • Ems (em) - The em is a scalable unit. One em is equal to the current font size;

  • Pixels (px) - Pixels are fixed-size units. One pixel is equal to one dot on the computer screen (the smallest division of a screen’s resolution).

  • Percent (%) - The percent unit is much like the “em” unit. When using the Percent unit the component remains fully scalable for mobile devices and accessibility.

Configuration

Dialog header title

Allows the user to set the text of the dialog header title


Draggable

Sets the capability to drag the component if the Page behavior property is set to Modal. Popover page behavior does not work on draggable mode. By default, the property is set to False.


Page behavior

Sets the runtime behavior of the component, allowing the user to choose between Modal (modal dialog) and Popover (contextual dialog).


Effects

Opacity

Sets the opacity of the component. The Opacity values should be numbers from 0 to 1 representing the opacity of the component. When the component has a value of 0 the element is completely invisible; a value of 1 is completely opaque (solid).

By default, the Component's opacity is set to value 1. Using the up /down arrows the user can control the opacity degree.


By clicking the Open button the view is extended to display the Opacity slider.


Shadow color

Sets the color of the component's shadow. The user can either manually type in the HEX color code or use the color picker tool.


Shadow offset X

Sets the offset of the shadow on the horizontal axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow offset Y

Sets the offset of the shadow on the vertical axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow size

Sets the width of the component shadow. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Navigation

Is external

Allows the possibility to set the link target to internal or external.

If the property is set to False, a current project page can be set as a target. The user can select the project page for the Link property or manually type in the path pointing to it.


Page parameters

Allows the possibility to add additional parameters for the navigation, by clicking the Add new item button.


In order to see the list of items, the user can click on the Expand array list button.


Furthermore, the following actions are available for each item:

  • Move up Move_up.jpg

  • Move down Move_down.jpg

  • Clone Clone.jpg

  • Remove item Remove.jpg

Page url

Sets the URL of the external or internal page, displayed at run-time within the Pipe vertical component. In case of an external URL, please make sure that the targeted website is either a locally hosted website or that the link is embeddable.


Palette

Background color

Sets the color of the component background, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Flow indicator color

Sets the color of the flow indicator, either by manually typing in the HEX color code or by using the color picker tool. Applying this property will overwrite the default CSS class.


Dialog header background

Sets the background of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Dialog header foreground

Sets the foreground of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Appearance

Animation duration

Sets the animation duration, expressed in seconds, using the up and down arrows to increase and decrease, or by manually typing the desired pixel value.


Dialog height

Sets the height of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Dialog width

Sets the width of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Display flow indicator

Sets the visibility of the flow indicator, by toggling the True / False button. If the flow indicator is enabled, the flow direction will be indicated by the component.

By default, the property is set to False.


Flat

Enables the possibility to remove additional visual elements or gloss from the component, if the property is set to True.

By default, the property is set to False.


Flow direction

Sets the direction of the flow indicator. The flow direction can be selected by choosing from the drop-down list values: down or up.


Flow indicator size

Sets the flow indicator size, expressed in pixels, using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.


Preferred popover position

Sets the positioning of the Pipe vertical popover panel. The position can be selected from the drop-down list options: (default), top, left, and right.


States

Current States

A component can have multiple states, each carrying its own set of properties. The user can add states, by clicking the Add new state button.


Furthermore, the following actions are available for each state:

  • Move up move_up.jpg

  • Move down move_down.jpg

  • Clone state clone_state.jpg

  • Remove state remove_state.jpg

State Name

By setting the Name property, the respective state will inherit that name, making the States easier to read.


State# Condition rule

The required rule for the extension to enter the state. The signal names must be always surrounded by percentage (%) characters, followed by logical operators and the Signal value.

For example: %Setpoint 1% != 0

The Condition rule can be either manually typed in or generated, using the State editor. The State editor can be opened by clicking the Expand array list button. This way, the user can easily generate a Condition rule, as follows:

  • Signal name - allows the user to select a Signal name for the Condition rule.

  • Comparator - allows the user to select the logical operator to construct the Condition rule.

  • Signal value - allows the user to add the Signal value, used to trigger the state condition.


State# CSS class name

Sets the behavior of the element when the logged-in user doesn't belong to the project authorization indicated by the projectAuthorization property. In this case, the element can be either disabled or hidden.


State# Symbolic text

The language-agnostic text (which is automatically translated) is displayed by the extension.


State# Display state

Sets the component visibility and accessibility when the state evolution passed. The user can choose from the following options:

  • Normal - the component will be displayed when the state evolution passed.

  • Hidden - the component will be hidden when the state evolution passed.

  • Disabled - the component will be displayed as disabled when the state evolution passed.


State# Foreground

Sets the foreground color of the button. Applying this property will override the default CSS class.


State# Background

Sets the background color of the button. Applying this property will override the default CSS class.


State# Animation

Sets the component animation class when the state evolution passed. The user can select the animation class from the drop-down list options: Fade in, Fade out or Blink.


Load from assets

Lists the State assets defined under the Assets management page, of the global actions area.

A simple filtering mechanism is also provided to support the user to easily pinpoint the desired state asset.

After selecting an asset from the list view, the user can click the Load button to apply it.


Save to assets

Allows the user the possibility to save a state asset defined during the current session. In this view, the user can either click the Generate name button to set a name for the asset or type in the name in the designated field.

By clicking the Apply button, the new state asset will be made available for further management actions in the Assets management page, of the global actions area. Also, the asset can be reused for other Component states.


Transform

Width

Sets the width of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component width can also be adjusted directly on the design surface by means of mouse manipulation.


Height

Sets the height of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component height can also be adjusted directly on the design surface by means of mouse manipulation.


Angle

Sets the rotation angle using the up and down arrows to increase and decrease, or by manually typing the desired degree value.

The component angle can also be adjusted directly on the design surface by means of mouse manipulation.


Left

Specifies the X (horizontal) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component X coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Top

Specifies the Y (vertical) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component Y coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Disable flip

Disables any flip transformation for this component. This keeps the component in the default position even when its container is flipped.


Horizontal flip

Flips the selected component horizontally.


Vertical flip

Flips the selected component vertically.

C pipe
Abstract

Check out this article in order to learn more details about the i4designer C pipe component and the properties it features.

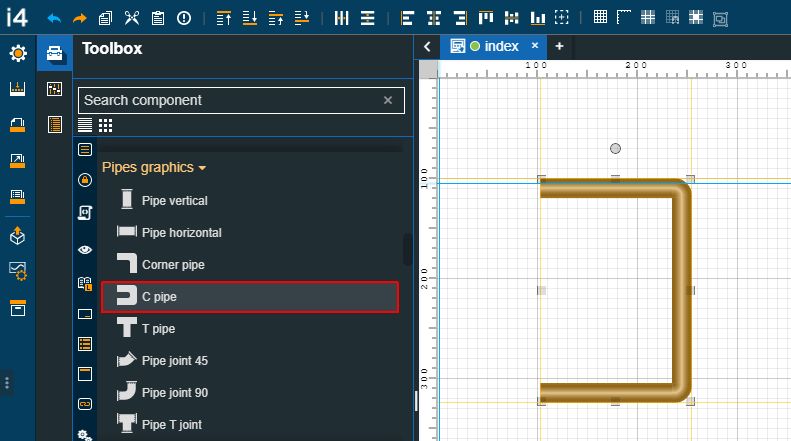

The i4designer C Pipe is an SVG graphic component capable to display multiple states based on different signals.


The C pipe component

Category

Property

Description

Common

Name

The name of the component, visible in other Designer locations (such as Page explorer).


Object ID

Sets the Object ID of the component. By defining an object ID for the control, it can be passed as SignalPrefix when using parameter passing in navigation. The value of the Object ID can be used via a placeholder [OID] in other properties of this extension. The placeholder is supported in all signal properties, symbolic text, and states.

Example: Setpoint [OID]


Tooltip text

Optional tooltip text, that will be shown on mouseover at runtime.


Security

System authorization / Permission

The system authorization required to display the component. If the logged in user does not have this system authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled for all users. Further on, the user can also add multiple System authorizations / Permissions, separated by comma (,).

This property is named "System authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Project authorization / Role

The project authorization required for displaying the component. If the logged in user does not have this project authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled to all users. Further on, the user can also add multiple Project authorizations / Roles, separated by comma (,).

This property is named "Project authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Security access behavior

Sets the behavior of the element to either disabled (grayed out) or hidden, when the logged in user doesn't meet the conditions imposed by the Project authorization / Roles and System authorization / Permissions properties. In case both Project authorization / Roles and System authorization / Permissions properties are set, the logged user needs to meet both conditions to be able to see and utilize the component, at run-time.


Layout

Layout mode

Sets the behavior of the component related to the page placement. The user can select the component layout from the options available in the drop-down list: Default, Dock top, Dock bottom, Dock left, Dock right, Stretched, Pin top left, Pin top center, Pin top right, Pin right middle, Pin bottom right, Pin bottom center, Pin bottom left, Pin left middle and Pin center.


Margin

Sets the margin of the component relative to the drawing board area. The supported values are the standard CSS values for the margin.

The top, bottom, left and right values can either be typed in the main property field or by using the Margin editor.


The Margin editor can be opened by clicking the Open button.


The components margins can be updated by setting the margin value and selecting the desired unit:

  • Ems (em) - The em is a scalable unit. One em is equal to the current font size;

  • Pixels (px) - Pixels are fixed-size units. One pixel is equal to one dot on the computer screen (the smallest division of a screen’s resolution).

  • Percent (%) - The percent unit is much like the “em” unit. When using the Percent unit the component remains fully scalable for mobile devices and accessibility.

Configuration

Dialog header title

Allows the user to set the text of the dialog header title


Draggable

Sets the capability to drag the component if the Page behavior property is set to Modal. Popover page behavior does not work on draggable mode. By default, the property is set to False.


Page behavior

Sets the runtime behavior of the component, allowing the user to choose between Modal (modal dialog) and Popover (contextual dialog).


Effects

Opacity

Sets the opacity of the component. The Opacity values should be numbers from 0 to 1 representing the opacity of the component. When the component has a value of 0 the element is completely invisible; a value of 1 is completely opaque (solid).

By default, the Component's opacity is set to value 1. Using the up /down arrows the user can control the opacity degree.


By clicking the Open button the view is extended to display the Opacity slider.


Shadow color

Sets the color of the component's shadow. The user can either manually type in the HEX color code or use the color picker tool.


Shadow offset X

Sets the offset of the shadow on the horizontal axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow offset Y

Sets the offset of the shadow on the vertical axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow size

Sets the width of the component shadow. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Navigation

Is external

Allows the possibility to set the link target to internal or external.

If the property is set to False, a current project page can be set as a target. The user can select the project page for the Link property or manually type in the path pointing to it.


Page parameters

Allows the possibility to add additional parameters for the navigation, by clicking the Add new item button.


In order to see the list of items, the user can click on the Expand array list button.


Furthermore, the following actions are available for each item:

  • Move up Move_up.jpg

  • Move down Move_down.jpg

  • Clone Clone.jpg

  • Remove item Remove.jpg

Page url

Sets the URL of the external or internal page, displayed at run-time within the Pipe vertical component. In case of an external URL, please make sure that the targeted website is either a locally hosted website or that the link is embeddable.


Palette

Background color

Sets the color of the component background, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Flow indicator color

Sets the color of the flow indicator, either by manually typing in the HEX color code or by using the color picker tool. Applying this property will overwrite the default CSS class.


Dialog header background

Sets the background of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Dialog header foreground

Sets the foreground of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Appearance

Animation duration

Sets the animation duration, expressed in seconds, using the up and down arrows to increase and decrease, or by manually typing the desired pixel value.


Dialog height

Sets the height of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Dialog width

Sets the width of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Display flow indicator

Sets the visibility of the flow indicator, by toggling the True / False button. If the flow indicator is enabled, the flow direction will be indicated by the component.

By default, the property is set to False.


Flat

Enables the possibility to remove additional visual elements or gloss from the component, if the property is set to True.

By default, the property is set to False.


Flow direction

Sets the direction of the flow indicator. The flow direction can be selected by choosing from the drop-down list values: down or up.


Flow indicator size

Sets the flow indicator size, expressed in pixels, using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.


Preferred popover position

Sets the positioning of the Pipe vertical popover panel. The position can be selected from the drop-down list options: (default), top, left, and right.


States

Current States

A component can have multiple states, each carrying its own set of properties. The user can add states, by clicking the Add new state button.


Furthermore, the following actions are available for each state:

  • Move up move_up.jpg

  • Move down move_down.jpg

  • Clone state clone_state.jpg

  • Remove state remove_state.jpg

State Name

By setting the Name property, the respective state will inherit that name, making the States easier to read.


State# Condition rule

The required rule for the extension to enter the state. The signal names must be always surrounded by percentage (%) characters, followed by logical operators and the Signal value.

For example: %Setpoint 1% != 0

The Condition rule can be either manually typed in or generated, using the State editor. The State editor can be opened by clicking the Expand array list button. This way, the user can easily generate a Condition rule, as follows:

  • Signal name - allows the user to select a Signal name for the Condition rule.

  • Comparator - allows the user to select the logical operator to construct the Condition rule.

  • Signal value - allows the user to add the Signal value, used to trigger the state condition.


State# CSS class name

Sets the behavior of the element when the logged-in user doesn't belong to the project authorization indicated by the projectAuthorization property. In this case, the element can be either disabled or hidden.


State# Symbolic text

The language-agnostic text (which is automatically translated) is displayed by the extension.


State# Display state

Sets the component visibility and accessibility when the state evolution passed. The user can choose from the following options:

  • Normal - the component will be displayed when the state evolution passed.

  • Hidden - the component will be hidden when the state evolution passed.

  • Disabled - the component will be displayed as disabled when the state evolution passed.


State# Foreground

Sets the foreground color of the button. Applying this property will override the default CSS class.


State# Background

Sets the background color of the button. Applying this property will override the default CSS class.


State# Animation

Sets the component animation class when the state evolution passed. The user can select the animation class from the drop-down list options: Fade in, Fade out or Blink.


Load from assets

Lists the State assets defined under the Assets management page, of the global actions area.

A simple filtering mechanism is also provided to support the user to easily pinpoint the desired state asset.

After selecting an asset from the list view, the user can click the Load button to apply it.


Save to assets

Allows the user the possibility to save a state asset defined during the current session. In this view, the user can either click the Generate name button to set a name for the asset or type in the name in the designated field.

By clicking the Apply button, the new state asset will be made available for further management actions in the Assets management page, of the global actions area. Also, the asset can be reused for other Component states.


Transform

Width

Sets the width of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component width can also be adjusted directly on the design surface by means of mouse manipulation.


Height

Sets the height of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component height can also be adjusted directly on the design surface by means of mouse manipulation.


Angle

Sets the rotation angle using the up and down arrows to increase and decrease, or by manually typing the desired degree value.

The component angle can also be adjusted directly on the design surface by means of mouse manipulation.


Left

Specifies the X (horizontal) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component X coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Top

Specifies the Y (vertical) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component Y coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Disable flip

Disables any flip transformation for this component. This keeps the component in the default position even when its container is flipped.


Horizontal flip

Flips the selected component horizontally.


Vertical flip

Flips the selected component vertically.

T pipe
Abstract

Check out this article in order to learn more details about the i4designer T pipe component and the properties it features.

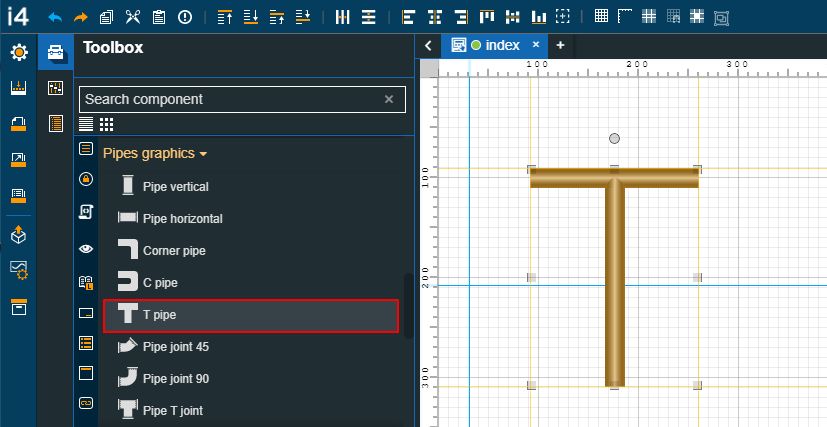

The i4designer T pipe is an SVG graphic component capable to display multiple states based on different signals.


The T pipe component

Category

Property

Description

Common

Name

The name of the component, visible in other Designer locations (such as Page explorer).


Object ID

Sets the Object ID of the component. By defining an object ID for the control, it can be passed as SignalPrefix when using parameter passing in navigation. The value of the Object ID can be used via a placeholder [OID] in other properties of this extension. The placeholder is supported in all signal properties, symbolic text, and states.

Example: Setpoint [OID]


Tooltip text

Optional tooltip text, that will be shown on mouseover at runtime.


Security

System authorization / Permission

The system authorization required to display the component. If the logged in user does not have this system authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled for all users. Further on, the user can also add multiple System authorizations / Permissions, separated by comma (,).

This property is named "System authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Project authorization / Role

The project authorization required for displaying the component. If the logged in user does not have this project authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled to all users. Further on, the user can also add multiple Project authorizations / Roles, separated by comma (,).

This property is named "Project authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Security access behavior

Sets the behavior of the element to either disabled (grayed out) or hidden, when the logged in user doesn't meet the conditions imposed by the Project authorization / Roles and System authorization / Permissions properties. In case both Project authorization / Roles and System authorization / Permissions properties are set, the logged user needs to meet both conditions to be able to see and utilize the component, at run-time.


Layout

Layout mode

Sets the behavior of the component related to the page placement. The user can select the component layout from the options available in the drop-down list: Default, Dock top, Dock bottom, Dock left, Dock right, Stretched, Pin top left, Pin top center, Pin top right, Pin right middle, Pin bottom right, Pin bottom center, Pin bottom left, Pin left middle and Pin center.


Margin

Sets the margin of the component relative to the drawing board area. The supported values are the standard CSS values for the margin.

The top, bottom, left and right values can either be typed in the main property field or by using the Margin editor.


The Margin editor can be opened by clicking the Open button.


The components margins can be updated by setting the margin value and selecting the desired unit:

  • Ems (em) - The em is a scalable unit. One em is equal to the current font size;

  • Pixels (px) - Pixels are fixed-size units. One pixel is equal to one dot on the computer screen (the smallest division of a screen’s resolution).

  • Percent (%) - The percent unit is much like the “em” unit. When using the Percent unit the component remains fully scalable for mobile devices and accessibility.

Configuration

Dialog header title

Allows the user to set the text of the dialog header title


Draggable

Sets the capability to drag the component if the Page behavior property is set to Modal. Popover page behavior does not work on draggable mode. By default, the property is set to False.


Page behavior

Sets the runtime behavior of the component, allowing the user to choose between Modal (modal dialog) and Popover (contextual dialog).


Effects

Opacity

Sets the opacity of the component. The Opacity values should be numbers from 0 to 1 representing the opacity of the component. When the component has a value of 0 the element is completely invisible; a value of 1 is completely opaque (solid).

By default, the Component's opacity is set to value 1. Using the up /down arrows the user can control the opacity degree.


By clicking the Open button the view is extended to display the Opacity slider.


Shadow color

Sets the color of the component's shadow. The user can either manually type in the HEX color code or use the color picker tool.


Shadow offset X

Sets the offset of the shadow on the horizontal axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow offset Y

Sets the offset of the shadow on the vertical axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow size

Sets the width of the component shadow. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Navigation

Is external

Allows the possibility to set the link target to internal or external.

If the property is set to False, a current project page can be set as a target. The user can select the project page for the Link property or manually type in the path pointing to it.


Page parameters

Allows the possibility to add additional parameters for the navigation, by clicking the Add new item button.


In order to see the list of items, the user can click on the Expand array list button.


Furthermore, the following actions are available for each item:

  • Move up Move_up.jpg

  • Move down Move_down.jpg

  • Clone Clone.jpg

  • Remove item Remove.jpg

Page url

Sets the URL of the external or internal page, displayed at run-time within the Pipe vertical component. In case of an external URL, please make sure that the targeted website is either a locally hosted website or that the link is embeddable.


Palette

Background color

Sets the color of the component background, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Flow indicator color

Sets the color of the flow indicator, either by manually typing in the HEX color code or by using the color picker tool. Applying this property will overwrite the default CSS class.


Dialog header background

Sets the background of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Dialog header foreground

Sets the foreground of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Appearance

Animation duration

Sets the animation duration, expressed in seconds, using the up and down arrows to increase and decrease, or by manually typing the desired pixel value.


Dialog height

Sets the height of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Dialog width

Sets the width of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Display flow indicator

Sets the visibility of the flow indicator, by toggling the True / False button. If the flow indicator is enabled, the flow direction will be indicated by the component.

By default, the property is set to False.


Flat

Enables the possibility to remove additional visual elements or gloss from the component, if the property is set to True.

By default, the property is set to False.


Flow direction

Sets the direction of the flow indicator. The flow direction can be selected by choosing from the drop-down list values: down or up.


Flow indicator size

Sets the flow indicator size, expressed in pixels, using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.


Preferred popover position

Sets the positioning of the Pipe vertical popover panel. The position can be selected from the drop-down list options: (default), top, left, and right.


States

Current States

A component can have multiple states, each carrying its own set of properties. The user can add states, by clicking the Add new state button.


Furthermore, the following actions are available for each state:

  • Move up move_up.jpg

  • Move down move_down.jpg

  • Clone state clone_state.jpg

  • Remove state remove_state.jpg

State Name

By setting the Name property, the respective state will inherit that name, making the States easier to read.


State# Condition rule

The required rule for the extension to enter the state. The signal names must be always surrounded by percentage (%) characters, followed by logical operators and the Signal value.

For example: %Setpoint 1% != 0

The Condition rule can be either manually typed in or generated, using the State editor. The State editor can be opened by clicking the Expand array list button. This way, the user can easily generate a Condition rule, as follows:

  • Signal name - allows the user to select a Signal name for the Condition rule.

  • Comparator - allows the user to select the logical operator to construct the Condition rule.

  • Signal value - allows the user to add the Signal value, used to trigger the state condition.


State# CSS class name

Sets the behavior of the element when the logged-in user doesn't belong to the project authorization indicated by the projectAuthorization property. In this case, the element can be either disabled or hidden.


State# Symbolic text

The language-agnostic text (which is automatically translated) is displayed by the extension.


State# Display state

Sets the component visibility and accessibility when the state evolution passed. The user can choose from the following options:

  • Normal - the component will be displayed when the state evolution passed.

  • Hidden - the component will be hidden when the state evolution passed.

  • Disabled - the component will be displayed as disabled when the state evolution passed.


State# Foreground

Sets the foreground color of the button. Applying this property will override the default CSS class.


State# Background

Sets the background color of the button. Applying this property will override the default CSS class.


State# Animation

Sets the component animation class when the state evolution passed. The user can select the animation class from the drop-down list options: Fade in, Fade out or Blink.


Load from assets

Lists the State assets defined under the Assets management page, of the global actions area.

A simple filtering mechanism is also provided to support the user to easily pinpoint the desired state asset.

After selecting an asset from the list view, the user can click the Load button to apply it.


Save to assets

Allows the user the possibility to save a state asset defined during the current session. In this view, the user can either click the Generate name button to set a name for the asset or type in the name in the designated field.

By clicking the Apply button, the new state asset will be made available for further management actions in the Assets management page, of the global actions area. Also, the asset can be reused for other Component states.


Transform

Width

Sets the width of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component width can also be adjusted directly on the design surface by means of mouse manipulation.


Height

Sets the height of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component height can also be adjusted directly on the design surface by means of mouse manipulation.


Angle

Sets the rotation angle using the up and down arrows to increase and decrease, or by manually typing the desired degree value.

The component angle can also be adjusted directly on the design surface by means of mouse manipulation.


Left

Specifies the X (horizontal) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component X coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Top

Specifies the Y (vertical) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component Y coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Disable flip

Disables any flip transformation for this component. This keeps the component in the default position even when its container is flipped.


Horizontal flip

Flips the selected component horizontally.


Vertical flip

Flips the selected component vertically.

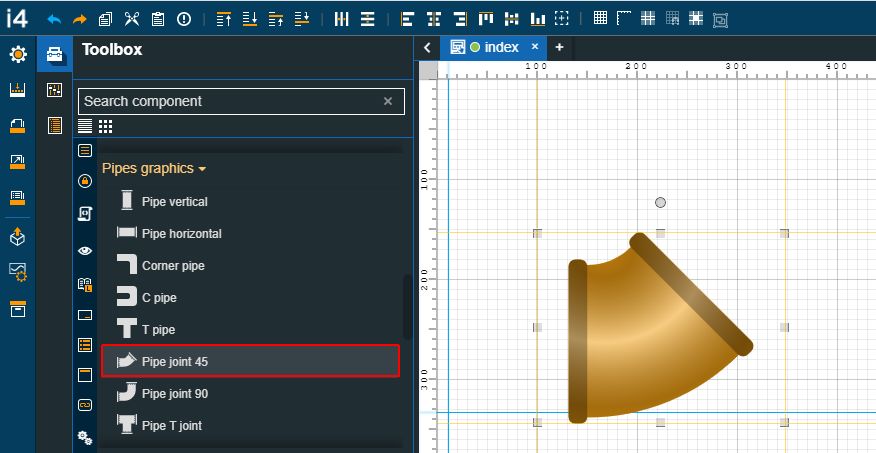

Pipe joint 45
Abstract

Check out this article in order to learn more details about the i4designer Pipe joint 45 component and the properties describing it.

The i4designer Pipe joint 45 is an SVG graphics component, able to display states based on different signals.


The Pipe joint 45 component

Category

Property

Description

Common

Name

The name of the component, visible in other Designer locations (such as Page explorer).


Object ID

Sets the Object ID of the component. By defining an object ID for the control, it can be passed as SignalPrefix when using parameter passing in navigation. The value of the Object ID can be used via a placeholder [OID] in other properties of this extension. The placeholder is supported in all signal properties, symbolic text, and states.

Example: Setpoint [OID]


Tooltip text

Optional tooltip text, that will be shown on mouseover at runtime.


Security

System authorization / Permission

The system authorization required to display the component. If the logged in user does not have this system authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled for all users. Further on, the user can also add multiple System authorizations / Permissions, separated by comma (,).

This property is named "System authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Project authorization / Role

The project authorization required for displaying the component. If the logged in user does not have this project authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled to all users. Further on, the user can also add multiple Project authorizations / Roles, separated by comma (,).

This property is named "Project authorization" for projects created on i4scada platform.


This property is named "Role" for projects created on i4connected platform.


Security access behavior

Sets the behavior of the element to either disabled (grayed out) or hidden, when the logged in user doesn't meet the conditions imposed by the Project authorization / Roles and System authorization / Permissions properties. In case both Project authorization / Roles and System authorization / Permissions properties are set, the logged user needs to meet both conditions to be able to see and utilize the component, at run-time.


Layout

Layout mode

Sets the behavior of the component related to the page placement. The user can select the component layout from the options available in the drop-down list: Default, Dock top, Dock bottom, Dock left, Dock right, Stretched, Pin top left, Pin top center, Pin top right, Pin right middle, Pin bottom right, Pin bottom center, Pin bottom left, Pin left middle and Pin center.


Margin

Sets the margin of the component relative to the drawing board area. The supported values are the standard CSS values for the margin.

The top, bottom, left and right values can either be typed in the main property field or by using the Margin editor.


The Margin editor can be opened by clicking the Open button.


The components margins can be updated by setting the margin value and selecting the desired unit:

  • Ems (em) - The em is a scalable unit. One em is equal to the current font size;

  • Pixels (px) - Pixels are fixed-size units. One pixel is equal to one dot on the computer screen (the smallest division of a screen’s resolution).

  • Percent (%) - The percent unit is much like the “em” unit. When using the Percent unit the component remains fully scalable for mobile devices and accessibility.

Navigation

Is external

Allows the possibility to set the link target to internal or external.

If the property is set to False, a current project page can be set as a target. The user can select the project page for the Link property or manually type in the path pointing to it.


Page parameters

Allows the possibility to add additional parameters for the navigation, by clicking the Add new item button.


In order to see the list of items, the user can click on the Expand array list button.


Furthermore, the following actions are available for each item:

  • Move up Move_up.jpg

  • Move down Move_down.jpg

  • Clone Clone.jpg

  • Remove item Remove.jpg

Page url

Sets the URL of the external or internal page, displayed at run-time within the Pipe vertical component. In case of an external URL, please make sure that the targeted website is either a locally hosted website or that the link is embeddable.


Appearance

Dialog height

Sets the height of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Dialog width

Sets the width of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Flat

Enables the possibility to remove additional visual elements or gloss from the component, if the property is set to True.

By default, the property is set to False.


Preferred popover position

Sets the positioning of the Pipe vertical popover panel. The position can be selected from the drop-down list options: (default), top, left, and right.


Configuration

Dialog header title

Allows the user to set the text of the dialog header title


Draggable

Sets the capability to drag the component if the Page behavior property is set to Modal. Popover page behavior does not work on draggable mode. By default, the property is set to False.


Page behavior

Sets the runtime behavior of the component, allowing the user to choose between Modal (modal dialog) and Popover (contextual dialog).


Effects

Opacity

Sets the opacity of the component. The Opacity values should be numbers from 0 to 1 representing the opacity of the component. When the component has a value of 0 the element is completely invisible; a value of 1 is completely opaque (solid).

By default, the Component's opacity is set to value 1. Using the up /down arrows the user can control the opacity degree.


By clicking the Open button the view is extended to display the Opacity slider.


Shadow color

Sets the color of the component's shadow. The user can either manually type in the HEX color code or use the color picker tool.


Shadow offset X

Sets the offset of the shadow on the horizontal axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow offset Y

Sets the offset of the shadow on the vertical axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow size

Sets the width of the component shadow. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Palette

Dialog header background

Sets the background of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Dialog header foreground

Sets the foreground of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Background color

Sets the color of the component background, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


States

Current States

A component can have multiple states, each carrying its own set of properties. The user can add states, by clicking the Add new state button.


Furthermore, the following actions are available for each state:

  • Move up move_up.jpg

  • Move down move_down.jpg

  • Clone state clone_state.jpg

  • Remove state remove_state.jpg

State Name

By setting the Name property, the respective state will inherit that name, making the States easier to read.


State# Condition rule

The required rule for the extension to enter the state. The signal names must be always surrounded by percentage (%) characters, followed by logical operators and the Signal value.

For example: %Setpoint 1% != 0

The Condition rule can be either manually typed in or generated, using the State editor. The State editor can be opened by clicking the Expand array list button. This way, the user can easily generate a Condition rule, as follows:

  • Signal name - allows the user to select a Signal name for the Condition rule.

  • Comparator - allows the user to select the logical operator to construct the Condition rule.

  • Signal value - allows the user to add the Signal value, used to trigger the state condition.


State# CSS class name

Sets the behavior of the element when the logged-in user doesn't belong to the project authorization indicated by the projectAuthorization property. In this case, the element can be either disabled or hidden.


State# Symbolic text

The language-agnostic text (which is automatically translated) is displayed by the extension.


State# Display state

Sets the component visibility and accessibility when the state evolution passed. The user can choose from the following options:

  • Normal - the component will be displayed when the state evolution passed.

  • Hidden - the component will be hidden when the state evolution passed.

  • Disabled - the component will be displayed as disabled when the state evolution passed.


State# Foreground

Sets the foreground color of the button. Applying this property will override the default CSS class.


State# Background

Sets the background color of the button. Applying this property will override the default CSS class.


State# Animation

Sets the component animation class when the state evolution passed. The user can select the animation class from the drop-down list options: Fade in, Fade out or Blink.


Load from assets

Lists the State assets defined under the Assets management page, of the global actions area.

A simple filtering mechanism is also provided to support the user to easily pinpoint the desired state asset.

After selecting an asset from the list view, the user can click the Load button to apply it.


Save to assets

Allows the user the possibility to save a state asset defined during the current session. In this view, the user can either click the Generate name button to set a name for the asset or type in the name in the designated field.

By clicking the Apply button, the new state asset will be made available for further management actions in the Assets management page, of the global actions area. Also, the asset can be reused for other Component states.


Transform

Width

Sets the width of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component width can also be adjusted directly on the design surface by means of mouse manipulation.


Height

Sets the height of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component height can also be adjusted directly on the design surface by means of mouse manipulation.


Angle

Sets the rotation angle using the up and down arrows to increase and decrease, or by manually typing the desired degree value.

The component angle can also be adjusted directly on the design surface by means of mouse manipulation.


Left

Specifies the X (horizontal) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component X coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Top

Specifies the Y (vertical) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component Y coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Disable flip

Disables any flip transformation for this component. This keeps the component in the default position even when its container is flipped.


Horizontal flip

Flips the selected component horizontally.


Vertical flip

Flips the selected component vertically.

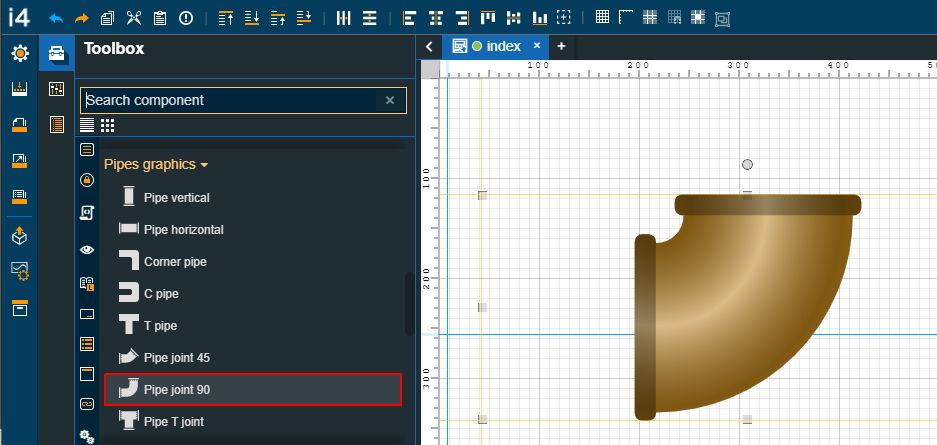

Pipe joint 90
Abstract

Check out this article and learn more details about the i4designer Pipe joint 90 component and the properties featured for it.

The i4designer Pipe joint 90 is an SVG graphic component capable to display states based on different signals.


The Pipe joint 90 component

Category

Property

Description

Common

Name

The name of the component, visible in other Designer locations (such as Page explorer).


Object ID

Sets the Object ID of the component. By defining an object ID for the control, it can be passed as SignalPrefix when using parameter passing in navigation. The value of the Object ID can be used via a placeholder [OID] in other properties of this extension. The placeholder is supported in all signal properties, symbolic text, and states.

Example: Setpoint [OID]


Tooltip text

Optional tooltip text, that will be shown on mouseover at runtime.


Security

System authorization / Permission

The system authorization required to display the component. If the logged in user does not have this system authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled for all users. Further on, the user can also add multiple System authorizations / Permissions, separated by comma (,).

This property is named "System authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Project authorization / Role

The project authorization required for displaying the component. If the logged in user does not have this project authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled to all users. Further on, the user can also add multiple Project authorizations / Roles, separated by comma (,).

This property is named "Project authorization" for projects created on i4scada platform.


This property is named "Role" for projects created on i4connected platform.


Security access behavior

Sets the behavior of the element to either disabled (grayed out) or hidden, when the logged in user doesn't meet the conditions imposed by the Project authorization / Roles and System authorization / Permissions properties. In case both Project authorization / Roles and System authorization / Permissions properties are set, the logged user needs to meet both conditions to be able to see and utilize the component, at run-time.


Layout

Layout mode

Sets the behavior of the component related to the page placement. The user can select the component layout from the options available in the drop-down list: Default, Dock top, Dock bottom, Dock left, Dock right, Stretched, Pin top left, Pin top center, Pin top right, Pin right middle, Pin bottom right, Pin bottom center, Pin bottom left, Pin left middle and Pin center.


Margin

Sets the margin of the component relative to the drawing board area. The supported values are the standard CSS values for the margin.

The top, bottom, left and right values can either be typed in the main property field or by using the Margin editor.


The Margin editor can be opened by clicking the Open button.


The components margins can be updated by setting the margin value and selecting the desired unit:

  • Ems (em) - The em is a scalable unit. One em is equal to the current font size;

  • Pixels (px) - Pixels are fixed-size units. One pixel is equal to one dot on the computer screen (the smallest division of a screen’s resolution).

  • Percent (%) - The percent unit is much like the “em” unit. When using the Percent unit the component remains fully scalable for mobile devices and accessibility.

Navigation

Is external

Allows the possibility to set the link target to internal or external.

If the property is set to False, a current project page can be set as a target. The user can select the project page for the Link property or manually type in the path pointing to it.


Page parameters

Allows the possibility to add additional parameters for the navigation, by clicking the Add new item button.


In order to see the list of items, the user can click on the Expand array list button.


Furthermore, the following actions are available for each item:

  • Move up Move_up.jpg

  • Move down Move_down.jpg

  • Clone Clone.jpg

  • Remove item Remove.jpg

Page url

Sets the URL of the external or internal page, displayed at run-time within the Pipe vertical component. In case of an external URL, please make sure that the targeted website is either a locally hosted website or that the link is embeddable.


Appearance

Dialog height

Sets the height of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Dialog width

Sets the width of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Flat

Enables the possibility to remove additional visual elements or gloss from the component, if the property is set to True.

By default, the property is set to False.


Preferred popover position

Sets the positioning of the Pipe vertical popover panel. The position can be selected from the drop-down list options: (default), top, left, and right.


Configuration

Dialog header title

Allows the user to set the text of the dialog header title


Draggable

Sets the capability to drag the component if the Page behavior property is set to Modal. Popover page behavior does not work on draggable mode. By default, the property is set to False.


Page behavior

Sets the runtime behavior of the component, allowing the user to choose between Modal (modal dialog) and Popover (contextual dialog).


Effects

Opacity

Sets the opacity of the component. The Opacity values should be numbers from 0 to 1 representing the opacity of the component. When the component has a value of 0 the element is completely invisible; a value of 1 is completely opaque (solid).

By default, the Component's opacity is set to value 1. Using the up /down arrows the user can control the opacity degree.


By clicking the Open button the view is extended to display the Opacity slider.


Shadow color

Sets the color of the component's shadow. The user can either manually type in the HEX color code or use the color picker tool.


Shadow offset X

Sets the offset of the shadow on the horizontal axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow offset Y

Sets the offset of the shadow on the vertical axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow size

Sets the width of the component shadow. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Palette

Dialog header background

Sets the background of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Dialog header foreground

Sets the foreground of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Background color

Sets the color of the component background, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


States

Current States

A component can have multiple states, each carrying its own set of properties. The user can add states, by clicking the Add new state button.


Furthermore, the following actions are available for each state:

  • Move up move_up.jpg

  • Move down move_down.jpg

  • Clone state clone_state.jpg

  • Remove state remove_state.jpg

State Name

By setting the Name property, the respective state will inherit that name, making the States easier to read.


State# Condition rule

The required rule for the extension to enter the state. The signal names must be always surrounded by percentage (%) characters, followed by logical operators and the Signal value.

For example: %Setpoint 1% != 0

The Condition rule can be either manually typed in or generated, using the State editor. The State editor can be opened by clicking the Expand array list button. This way, the user can easily generate a Condition rule, as follows:

  • Signal name - allows the user to select a Signal name for the Condition rule.

  • Comparator - allows the user to select the logical operator to construct the Condition rule.

  • Signal value - allows the user to add the Signal value, used to trigger the state condition.


State# CSS class name

Sets the behavior of the element when the logged-in user doesn't belong to the project authorization indicated by the projectAuthorization property. In this case, the element can be either disabled or hidden.


State# Symbolic text

The language-agnostic text (which is automatically translated) is displayed by the extension.


State# Display state

Sets the component visibility and accessibility when the state evolution passed. The user can choose from the following options:

  • Normal - the component will be displayed when the state evolution passed.

  • Hidden - the component will be hidden when the state evolution passed.

  • Disabled - the component will be displayed as disabled when the state evolution passed.


State# Foreground

Sets the foreground color of the button. Applying this property will override the default CSS class.


State# Background

Sets the background color of the button. Applying this property will override the default CSS class.


State# Animation

Sets the component animation class when the state evolution passed. The user can select the animation class from the drop-down list options: Fade in, Fade out or Blink.


Load from assets

Lists the State assets defined under the Assets management page, of the global actions area.

A simple filtering mechanism is also provided to support the user to easily pinpoint the desired state asset.

After selecting an asset from the list view, the user can click the Load button to apply it.


Save to assets

Allows the user the possibility to save a state asset defined during the current session. In this view, the user can either click the Generate name button to set a name for the asset or type in the name in the designated field.

By clicking the Apply button, the new state asset will be made available for further management actions in the Assets management page, of the global actions area. Also, the asset can be reused for other Component states.


Transform

Width

Sets the width of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component width can also be adjusted directly on the design surface by means of mouse manipulation.


Height

Sets the height of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component height can also be adjusted directly on the design surface by means of mouse manipulation.


Angle

Sets the rotation angle using the up and down arrows to increase and decrease, or by manually typing the desired degree value.

The component angle can also be adjusted directly on the design surface by means of mouse manipulation.


Left

Specifies the X (horizontal) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component X coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Top

Specifies the Y (vertical) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component Y coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Disable flip

Disables any flip transformation for this component. This keeps the component in the default position even when its container is flipped.


Horizontal flip

Flips the selected component horizontally.


Vertical flip

Flips the selected component vertically.

Pipe T join
Abstract

Check out this article in order to learn more details about the i4designer Pipe T joint component and the properties featured for it.

The i4designer Pipe T joint is an SVG graphics component capable to display states based on different signals.


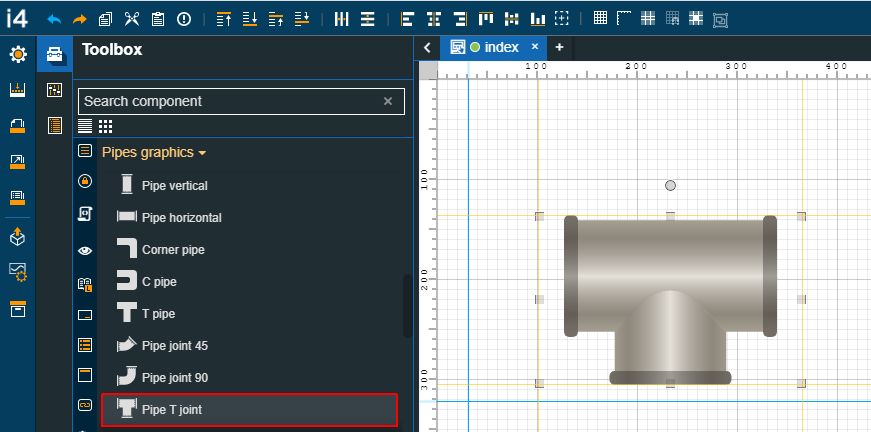

The Pipe T joint component

Category

Property

Description

Common

Name

The name of the component, visible in other Designer locations (such as Page explorer).


Object ID

Sets the Object ID of the component. By defining an object ID for the control, it can be passed as SignalPrefix when using parameter passing in navigation. The value of the Object ID can be used via a placeholder [OID] in other properties of this extension. The placeholder is supported in all signal properties, symbolic text, and states.

Example: Setpoint [OID]


Tooltip text

Optional tooltip text, that will be shown on mouseover at runtime.


Security

System authorization / Permission

The system authorization required to display the component. If the logged in user does not have this system authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled for all users. Further on, the user can also add multiple System authorizations / Permissions, separated by comma (,).

This property is named "System authorization" for projects created on i4scada platform.


This property is named "Permissions" for projects created on i4connected platform.


Project authorization / Role

The project authorization required for displaying the component. If the logged in user does not have this project authorization, the component will not be visible or enabled (depending on the set Security access behavior). If the property is left empty, the component will be visible and enabled to all users. Further on, the user can also add multiple Project authorizations / Roles, separated by comma (,).

This property is named "Project authorization" for projects created on i4scada platform.


This property is named "Role" for projects created on i4connected platform.


Security access behavior

Sets the behavior of the element to either disabled (grayed out) or hidden, when the logged in user doesn't meet the conditions imposed by the Project authorization / Roles and System authorization / Permissions properties. In case both Project authorization / Roles and System authorization / Permissions properties are set, the logged user needs to meet both conditions to be able to see and utilize the component, at run-time.


Layout

Layout mode

Sets the behavior of the component related to the page placement. The user can select the component layout from the options available in the drop-down list: Default, Dock top, Dock bottom, Dock left, Dock right, Stretched, Pin top left, Pin top center, Pin top right, Pin right middle, Pin bottom right, Pin bottom center, Pin bottom left, Pin left middle and Pin center.


Margin

Sets the margin of the component relative to the drawing board area. The supported values are the standard CSS values for the margin.

The top, bottom, left and right values can either be typed in the main property field or by using the Margin editor.


The Margin editor can be opened by clicking the Open button.


The components margins can be updated by setting the margin value and selecting the desired unit:

  • Ems (em) - The em is a scalable unit. One em is equal to the current font size;

  • Pixels (px) - Pixels are fixed-size units. One pixel is equal to one dot on the computer screen (the smallest division of a screen’s resolution).

  • Percent (%) - The percent unit is much like the “em” unit. When using the Percent unit the component remains fully scalable for mobile devices and accessibility.

Navigation

Is external

Allows the possibility to set the link target to internal or external.

If the property is set to False, a current project page can be set as a target. The user can select the project page for the Link property or manually type in the path pointing to it.


Page parameters

Allows the possibility to add additional parameters for the navigation, by clicking the Add new item button.


In order to see the list of items, the user can click on the Expand array list button.


Furthermore, the following actions are available for each item:

  • Move up Move_up.jpg

  • Move down Move_down.jpg

  • Clone Clone.jpg

  • Remove item Remove.jpg

Page url

Sets the URL of the external or internal page, displayed at run-time within the Pipe vertical component. In case of an external URL, please make sure that the targeted website is either a locally hosted website or that the link is embeddable.


Appearance

Dialog height

Sets the height of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Dialog width

Sets the width of the dialog measured in pixels. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Flat

Enables the possibility to remove additional visual elements or gloss from the component, if the property is set to True.

By default, the property is set to False.


Preferred popover position

Sets the positioning of the Pipe vertical popover panel. The position can be selected from the drop-down list options: (default), top, left, and right.


Configuration

Dialog header title

Allows the user to set the text of the dialog header title


Draggable

Sets the capability to drag the component if the Page behavior property is set to Modal. Popover page behavior does not work on draggable mode. By default, the property is set to False.


Page behavior

Sets the runtime behavior of the component, allowing the user to choose between Modal (modal dialog) and Popover (contextual dialog).


Effects

Opacity

Sets the opacity of the component. The Opacity values should be numbers from 0 to 1 representing the opacity of the component. When the component has a value of 0 the element is completely invisible; a value of 1 is completely opaque (solid).

By default, the Component's opacity is set to value 1. Using the up /down arrows the user can control the opacity degree.


By clicking the Open button the view is extended to display the Opacity slider.


Shadow color

Sets the color of the component's shadow. The user can either manually type in the HEX color code or use the color picker tool.


Shadow offset X

Sets the offset of the shadow on the horizontal axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow offset Y

Sets the offset of the shadow on the vertical axis. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Shadow size

Sets the width of the component shadow. The default value can be increased or decreased, either by manually typing in the desired value or by using the up and down arrows.


Palette

Dialog header background

Sets the background of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Dialog header foreground

Sets the foreground of the dialog header, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


Background color

Sets the color of the component background, either by manually typing in the HEX color code or by using the color picker tool. As the component colors are injected by the default CSS, changing the color will overwrite the CSS.


States

Current States

A component can have multiple states, each carrying its own set of properties. The user can add states, by clicking the Add new state button.


Furthermore, the following actions are available for each state:

  • Move up move_up.jpg

  • Move down move_down.jpg

  • Clone state clone_state.jpg

  • Remove state remove_state.jpg

State Name

By setting the Name property, the respective state will inherit that name, making the States easier to read.


State# Condition rule

The required rule for the extension to enter the state. The signal names must be always surrounded by percentage (%) characters, followed by logical operators and the Signal value.

For example: %Setpoint 1% != 0

The Condition rule can be either manually typed in or generated, using the State editor. The State editor can be opened by clicking the Expand array list button. This way, the user can easily generate a Condition rule, as follows:

  • Signal name - allows the user to select a Signal name for the Condition rule.

  • Comparator - allows the user to select the logical operator to construct the Condition rule.

  • Signal value - allows the user to add the Signal value, used to trigger the state condition.


State# CSS class name

Sets the behavior of the element when the logged-in user doesn't belong to the project authorization indicated by the projectAuthorization property. In this case, the element can be either disabled or hidden.


State# Symbolic text

The language-agnostic text (which is automatically translated) is displayed by the extension.


State# Display state

Sets the component visibility and accessibility when the state evolution passed. The user can choose from the following options:

  • Normal - the component will be displayed when the state evolution passed.

  • Hidden - the component will be hidden when the state evolution passed.

  • Disabled - the component will be displayed as disabled when the state evolution passed.


State# Foreground

Sets the foreground color of the button. Applying this property will override the default CSS class.


State# Background

Sets the background color of the button. Applying this property will override the default CSS class.


State# Animation

Sets the component animation class when the state evolution passed. The user can select the animation class from the drop-down list options: Fade in, Fade out or Blink.


Load from assets

Lists the State assets defined under the Assets management page, of the global actions area.

A simple filtering mechanism is also provided to support the user to easily pinpoint the desired state asset.

After selecting an asset from the list view, the user can click the Load button to apply it.


Save to assets

Allows the user the possibility to save a state asset defined during the current session. In this view, the user can either click the Generate name button to set a name for the asset or type in the name in the designated field.

By clicking the Apply button, the new state asset will be made available for further management actions in the Assets management page, of the global actions area. Also, the asset can be reused for other Component states.


Transform

Width

Sets the width of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component width can also be adjusted directly on the design surface by means of mouse manipulation.


Height

Sets the height of the component using the up and down arrows to increase and decrease, or by manually typing the desired pixels value.

The component height can also be adjusted directly on the design surface by means of mouse manipulation.


Angle

Sets the rotation angle using the up and down arrows to increase and decrease, or by manually typing the desired degree value.

The component angle can also be adjusted directly on the design surface by means of mouse manipulation.


Left

Specifies the X (horizontal) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component X coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Top

Specifies the Y (vertical) coordinate of the component, on the grid, using the up and down arrows to increase and decrease, or by manually typing the desired value.

The component Y coordinate can also be adjusted directly on the design surface by means of mouse manipulation.


Disable flip

Disables any flip transformation for this component. This keeps the component in the default position even when its container is flipped.


Horizontal flip

Flips the selected component horizontally.


Vertical flip

Flips the selected component vertically.
