i4scada Activity Analyzer Overview
The i4scada Activity Analyzer is a system diagnostic interface displaying multiple levels of logs, starting with errors and ending with debugging messages.
i4scada Activity Analyzer is used to display different levels of logs (from errors to debugging messages) from different diagnostic interfaces and allows a high level of customization. The diagnostic interfaces can be filtered, as well as the level of logging for the selected diagnostic interfaces.
Activity Analyser
Besides the standard diagnostic interfaces, Activity Analyzer supports custom applications that can be defined by the user.
i4scada system has comprehensive standard diagnostic interfaces that can be analyzed and evaluated by Activity Analyzer.
Modules with a diagnostic interface:
Server
Logger
AlarmManager
ScriptEngine
MessengerPro
SchedulerPro
Studio
IoTManager
WebServices
CompatibilityManager
Modbus
ADS
SNMP
SIMATICConnector
OPCUAConnector
BACnet

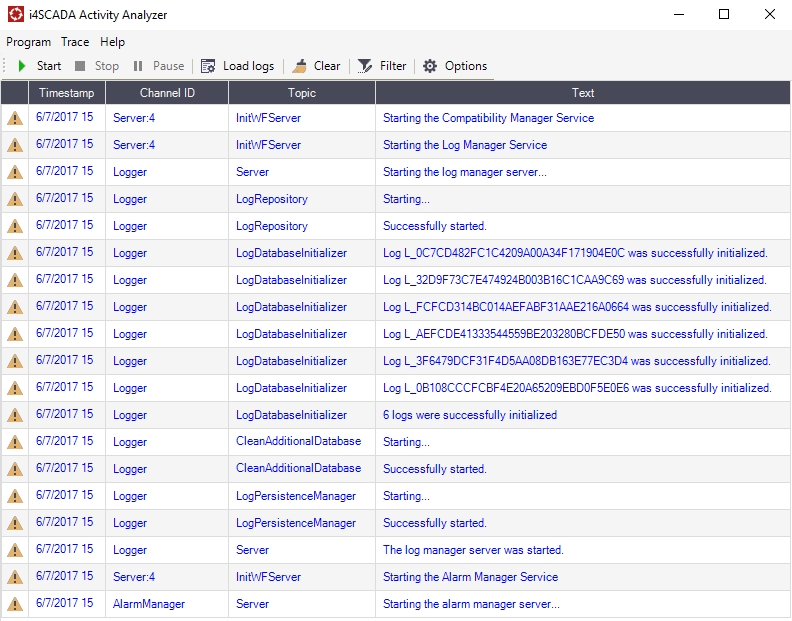

The user interface consists of a display area, where messages are presented online and a menu area, from where various settings and operations can be accessed.
The Program menu
Program menu
UI Option | Description |
|---|---|
Filter | Opens the Filter settings window, allowing you to set up individual filtering for each diagnostic interface. |
Options | Opens the Options window, allowing you to configure the Activity Analyzer itself and the log writer. |
Exit | Closes the program. |
The Trace menu
Trace menu
Option | Description |
|---|---|
Start | Diagnostic messages will start to be issued. |
Stop | Diagnostic messages will cease to be issued. |
Pause | The issuing of diagnostic messages will be paused. |
Load Logs | Loads saved log files. |
Clear | Clears the display area. |
The Help menu
Help menu
UI Option | Description |
|---|---|
View Help | Opens the Activity Analyzer help file. |
About | Displays a dialog window with the number of the current version. |
