SchedulerPro Web Application
Learn how to configure the i4scada SchedulerPro Web Application and how to consequently access it.
The scope of the present article is to describe the Web Application of SchedulerPro.
The WEB Application may be used with multiple browsers: Internet Explorer 11 (or higher), Chrome, Microsoft Edge, Mozilla Firefox.
Use the http://servername/_SERVICES/SchedulerPro/LoginPage.aspx address in the web browser. Replace the “servername” with the name of the computer where SchedulerPro is installed. After the initialization, the login window appears.

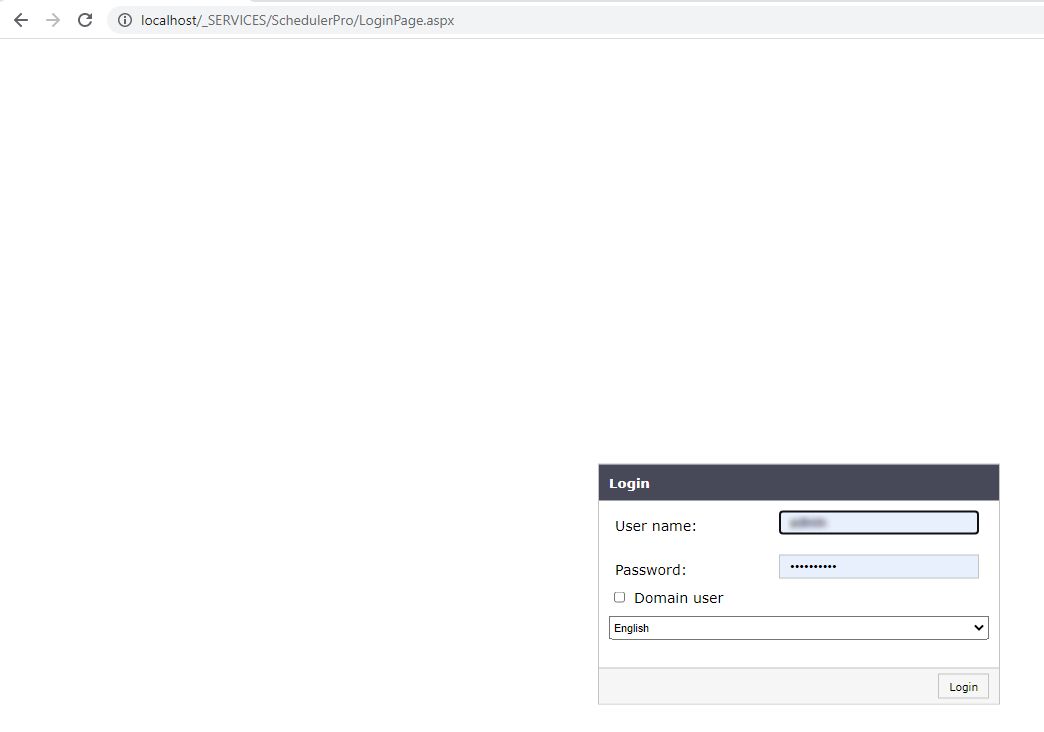

Web Application login page
After filling in the user credentials and selecting the desired language, press the Login button.

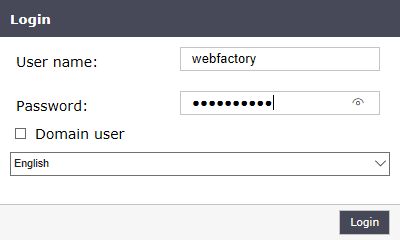

Fill in user credentials
The SchedulerPro Web Application is opened in a browser. The user interface features all the actions available in i4scada Studio.

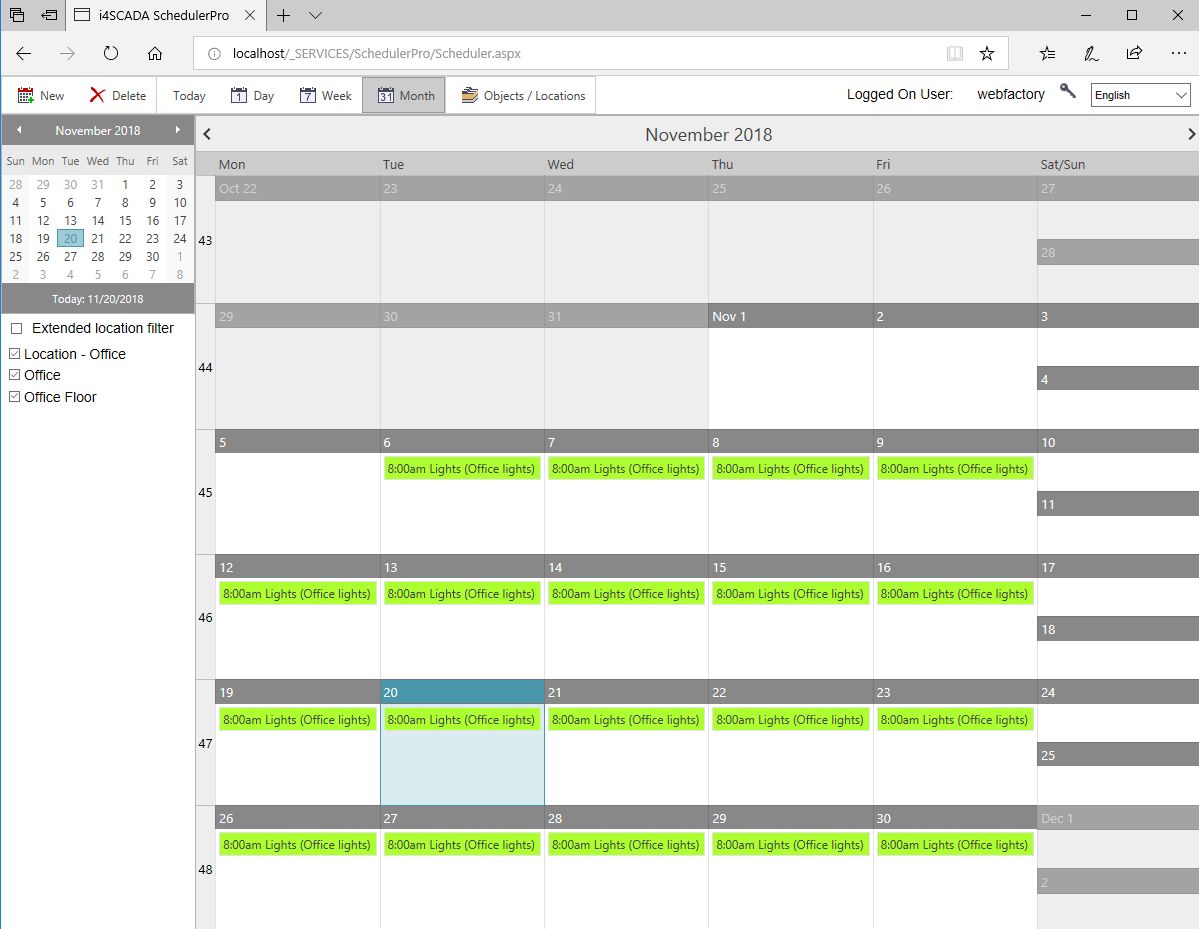

SchedulerPro Web Application
SchedulerPro Web Application Security
Check out this article and learn more details about the i4scada SchedulerPro Web Application Security and the needed System Authorizations.
This article describes the security settings that users need to consider when working with the SchedulerPro module using the Web Application.
SchedulerPro security is enforced by the System Authorizations enabled at level of i4scada Authorization Groups to which system Users are assigned.
Tip
For additional information about the User Manager, please refer to the dedicated article here.
As described by the Authorization Groups management article, the following System Authorizations guard the security of SchedulerPro module:
SchedulerPro Login
SchedulerPro Service member
Schedulerpro Operator
SchedulerPro Administrator
The table below illustrates the level of permission that each System Authorization enforces, as follows:
Operation | Login authorization | Server member authorization | Operator authorization | Administrator authorization |
|---|---|---|---|---|
Login | Yes | Yes | Yes | Yes |
Logout | Yes | Yes | Yes | Yes |
Change language | Yes | Yes | Yes | Yes |
Locations filter | Yes (for permitted Locations) | Yes (for permitted Locations) | Yes (for permitted Locations) | Yes |
View extended filter option | Yes | Yes | Yes | Yes |
Add extended filter | No | Yes | Yes | Yes |
Copy extended filter | No | Yes | Yes | Yes |
Edit extended filter | No | Yes | Yes | Yes |
Delete extended filter | No | Yes | Yes | Yes |
Load extended filter | Yes | Yes | Yes | Yes |
Adopt extended filter | Yes | Yes | Yes | Yes |
View calendar options (Today, Day, Week, Month) | Yes | Yes | Yes | Yes |
View calendar event | Yes (for permitted Locations) | Yes (for permitted Locations) | Yes (for permitted Locations) | Yes |
Edit calendar event | No | Yes | Yes | Yes |
Delete calendar event | No | Yes | Yes | Yes |
Create event | No | Yes (for permitted Locations) | Yes (for permitted Locations) | Yes |
Open associated event program | Yes | Yes | Yes | Yes |
Copy event occurrence | No | Yes | Yes | Yes |
Paste copied event occurrence | No | Yes | Yes | Yes |
View exception day | Yes | Yes | Yes | Yes |
Create exception day | No | Yes | Yes | Yes |
Edit exception day | No | Yes | Yes | Yes |
Delete exception day | No | Yes | Yes | Yes |
View list of exception types | Yes | Yes | Yes | Yes |
Edit exception type | No | Yes | Yes | Yes |
Add exception type | No | Yes | Yes | Yes |
Delete exception type | No | Yes | Yes | Yes |
View Locations structure | Yes (for permitted Locations) | Yes (for permitted Locations) | Yes (for permitted Locations) | Yes |
Add Location | No | No | No | Yes |
Edit Location | No | No | No | Yes |
Delete Location | No | No | No | Yes |
View a Location Programs | Yes (for permitted Locations) | Yes (for permitted Locations) | Yes (for permitted Locations) | Yes |
Add Program | No | Yes | Yes | Yes |
Edit Program | No | Yes | Yes | Yes |
Copy Program | No | Yes | Yes | Yes |
Delete Program | No | Yes | Yes | Yes |
