Configuration of Signal Write Groups
Check out how to define a Signal Write Group to write Signal values and configure its authorization settings as desired.
The Write Groups view displays the available Write Groups and allows the user to create new ones using the contextual menu. The signals are assigned to the existing write groups and the users with access to the write groups can write the values of the signals contained by them.

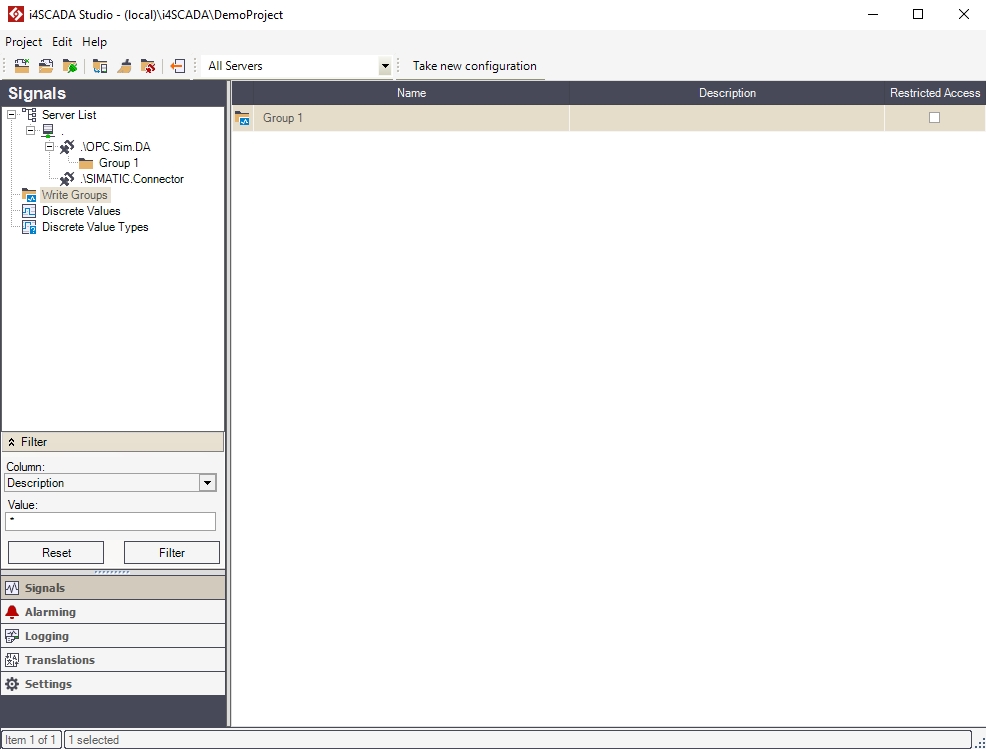

Write Groups panel
The write groups access is defined per user inside i4scada User Manager.
The following write groups properties are displayed in the write groups view:
Name - The name of the write group.
Description - The optional description of the write group.
Restricted Access - If active, another user may perform a write operation only after the currently active user has logged off. The writing operations are allowed only for logged-in users.
To create a new write group, right-click on either the Write Groups node or inside the write groups view and select New Write Group.
Write Groups View Actions and Options
This section of the topic describes the actions that can be performed in the current view.
Tree menu contextual menu
Right-clicking on Write Groups in the Signals tree menu will open the contextual menu.
Write Group contextual menu
Contextual menu of Write Groups node | Description |
|---|---|
Expand / Collapse | Expands/Collapses the clicked element. In the Write Groups case, the option is disabled because the Write Groups cannot have any sub-items. |
New Write Group | Allows the user to add a new Write Group to the list. |
Delete | Deletes the selected Write Group. Active only in the main view. |
Refresh | Reloads the groups' list. |
Main panel contextual menu
Right-clicking in the Write Groups main panel will open the contextual menu.
Listed Write Groups contextual menu
Contextual menu of Listed Write Groups node | Description |
|---|---|
Edit | Edits the content of the cell where the contextual menu was triggered. |
New Write Group | Allows the user to add a new Write Group to the list. |
Delete | Deletes the selected Write Group. |
Refresh | Reloads the groups list. |
