The Alarm Filter
The Alarm Filter allows the user to search for alarms by specific criteria or a combination of criteria. Check out more details about the filter criteria here!
The Alarm Filter is very similar to The Events Filter as it allows the user to search for alarms by applying specific criteria (or a combination of criteria). If no filtering criteria are applied to the list, all the alarms will be displayed for the searched pattern.

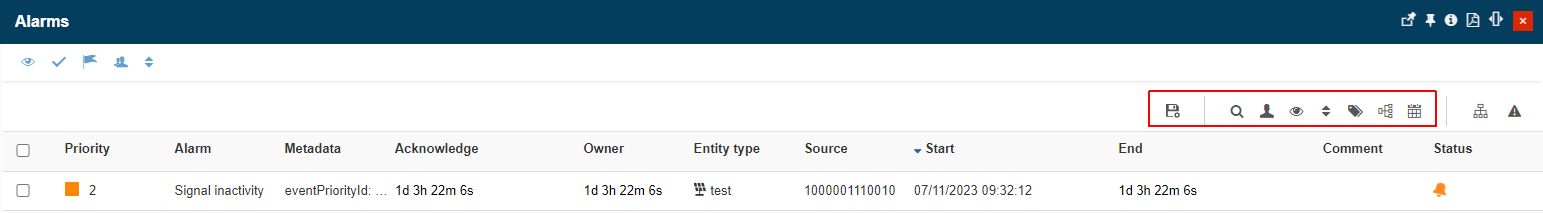

The Alarm filter options are available on the upper right side of the Alarms panel and the Historical Alarms panel.
The Alarm filtering options
The user can apply the following Alarm filters:

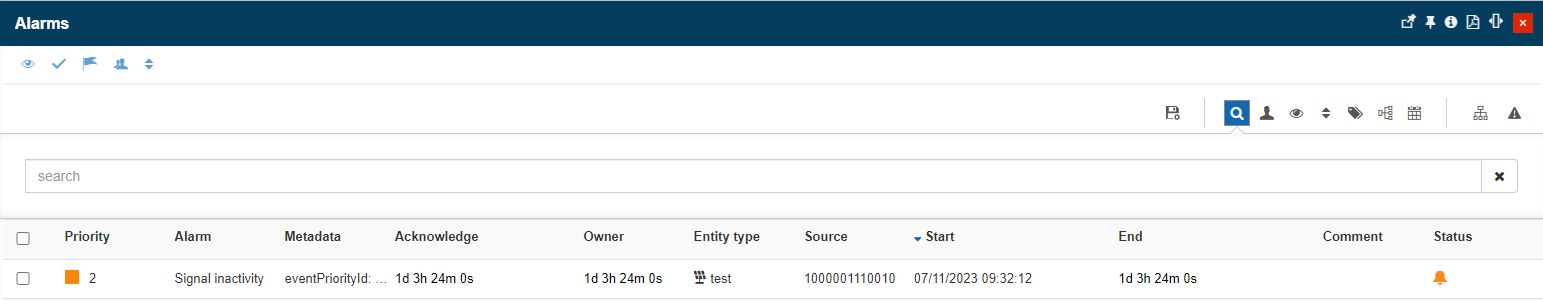

In the Search field - clicking the Search button, the Alarms filtering area is expanded to display the search box where the user can input textual information to be searched for in the list. In this view, the user can search Alarms by Owner name and Source.
The Alarm Search field

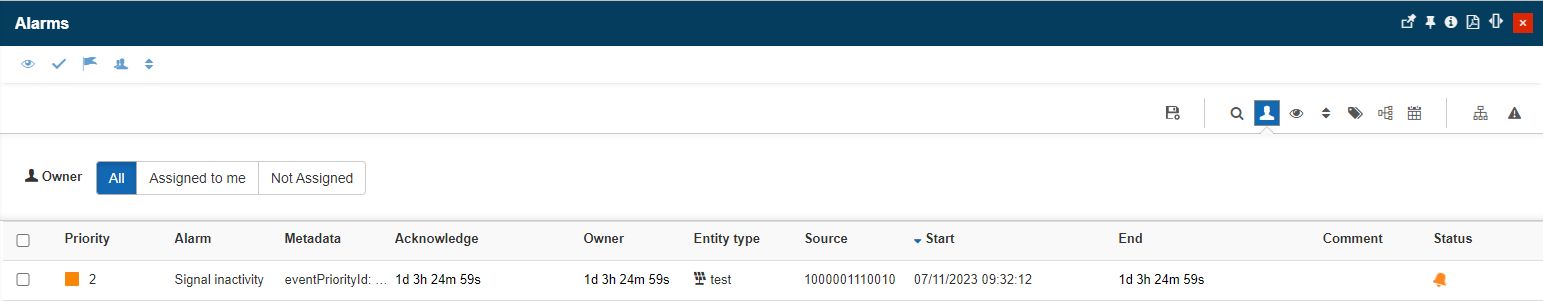

The Owner filter - clicking the Owner button, the Alarms filtering area is expanded to display the Owner-specific filtering options. The user can select to apply the filter as follows:
The Owner filter
All - displays the Alarms of all owners.
Assigned to me - displays the Alarms that are owned by the currently logged-in user.
Not Assigned - displays the Alarms that are currently not owned by anyone.

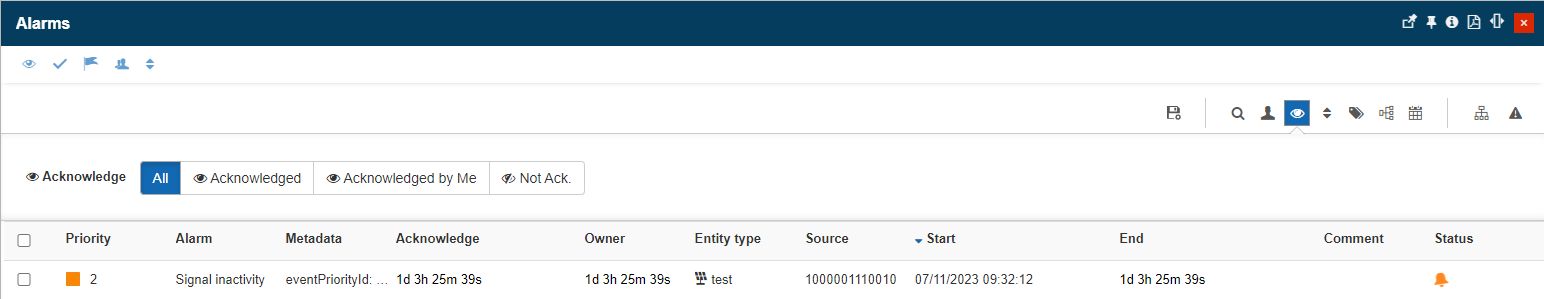

The Acknowledgement filter - clicking the Acknowledgement button, the Alarms filtering area is expanded to display the following Acknowledge specific filtering options:
The Acknowledgement filter
All - displays all acknowledged and not acknowledged Alarms.
Acknowledged - displays all acknowledged Alarms.
Not Ack. - displays all not acknowledged Alarms.

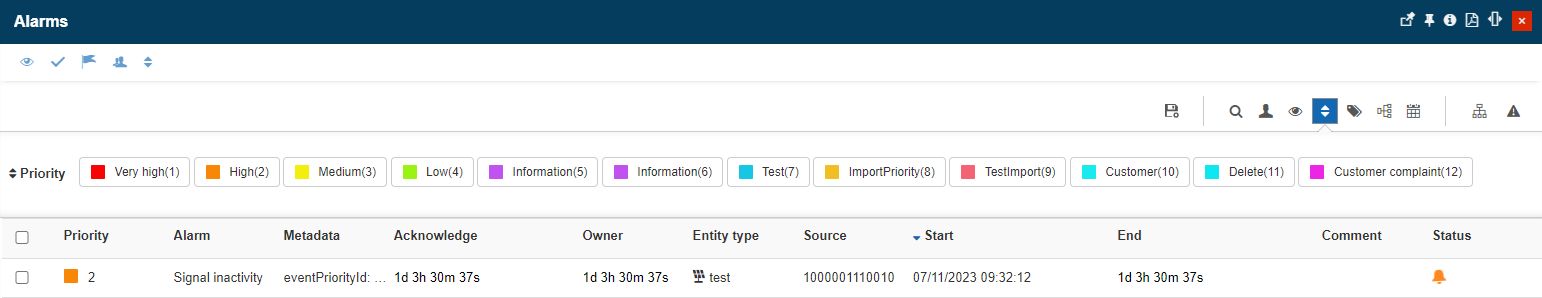

The Priority filter - clicking the Priority button, the Alarms filtering area is expanded to display all the Event Priorities available in the system, allowing the user to enable/disable them.
The Priority filter

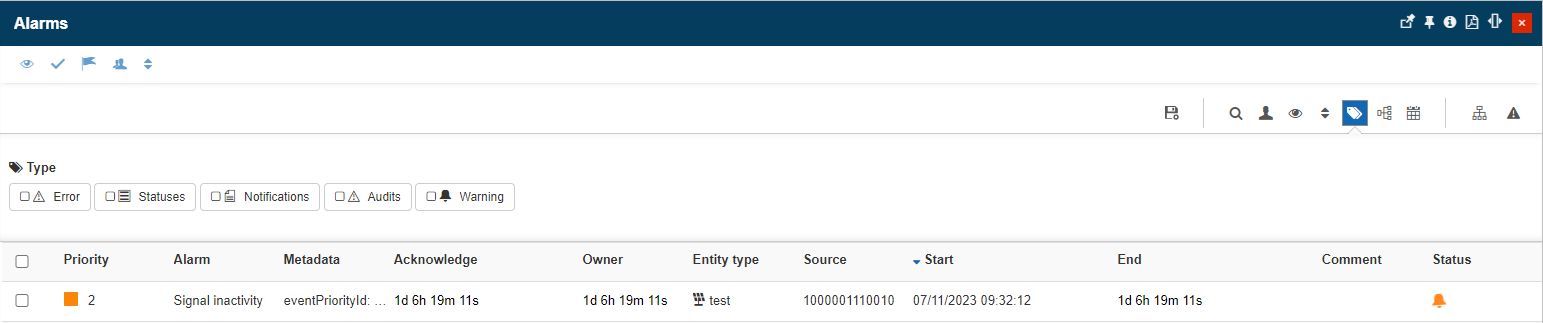

The Type filter - clicking the Type button, the Alarms filtering area is expanded to display all the Event Types available in the system, allowing the user to enable/disable them.
The Type filter

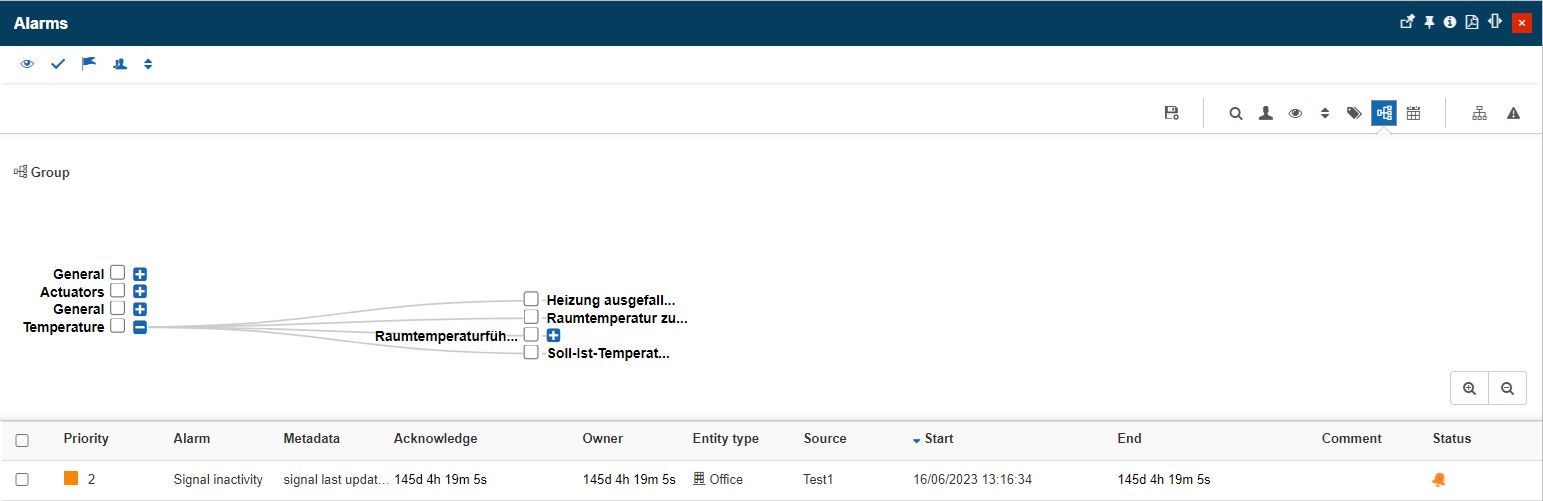

The Group filter - clicking the Group button, the Alarms filtering area is expanded to display all the Event Groups available in the system, allowing the user to enable/disable them.
The Group filter

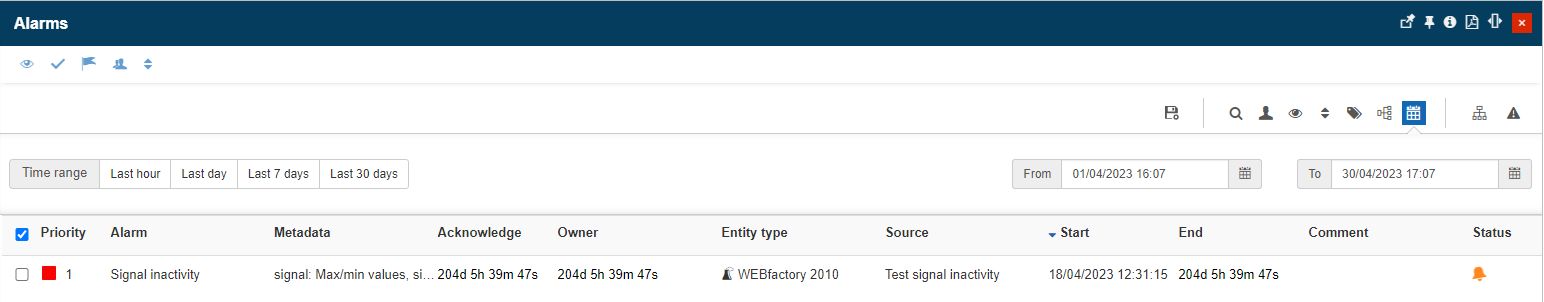

The Date filter - clicking the Date button, the Alarms filtering area is expanded to display two calendar selectors, where the user can define the From / To dates. By applying the filter dates, the Alarms list will be updated to only display the Alarms having the Start and End date within the filtering time interval.
The user can also apply one of the predefined Time ranges, such as:
The Date filter
Last hour
Last day
Last 7 days
Last 30 days
It is possible to apply only one filter or multiple. Setting up any of the above-described filters will automatically apply them to the Alarms list. The user does not need to organize any further actions.

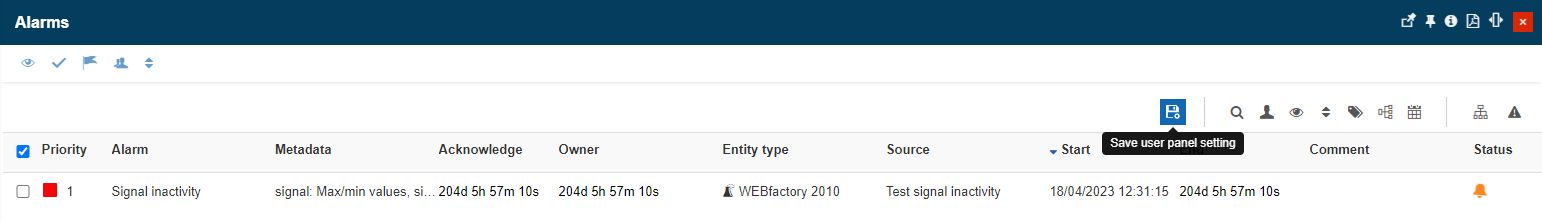

After setting the desired filters, the user can also preserve the current settings, by clicking the Save user panel setting button.
The Save user panel setting
