Logging Section

Abstract

A signal log definition configures the method of storing the value of a signal depending on a condition. If the log condition is fulfilled, the signal value is logged.

The Logging section displays the list of log definitions on each server in Studio. A log definition configures the method of storing the value of a signal depending on a condition. If the log condition is fulfilled, the signal values is logged.

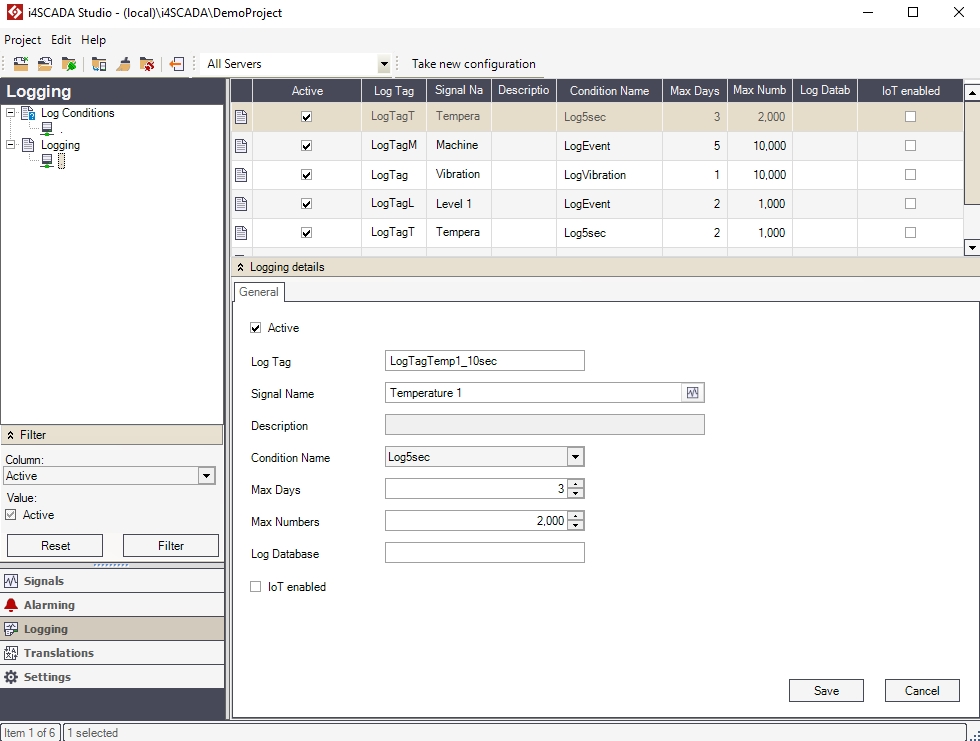

The Logging section

The main view displays the available log definitions in a grid form, having the following columns:

UI Option

Description

Active

Activate/deactivate the log definition.

Log Tag

The log definition name

Signal Name

The signal for which the value will be logged.

Description

The description of the log definition.

Condition Name

The condition that needs to be met in order to log the signal value. See Log Conditions for more details.

Max Days

The maximum number of days for storing the logged data (a ring buffer and/or the FIFO principle)

Max Number

The maximum number of saved data (a ring buffer and/or the FIFO principle)

Log Database

The name of the database for storing logged data:

  • No name: The logged data is saved in the default database.

  • Name: The logged data is saved in a separate “Name” database.

Right-clicking on the Logging item in the Logging tree menu will open the contextual menu. The Logging contextual menu provides a single option for creating new log definitions.


Logging contextual menu in the tree menu

UI Option

Description

New

Creates a new log definition.

Right-clicking on an log definition listed in the main panel will open the contextual menu, providing the options to edit the column in which the contextual menu is opened, add or delete log definitions, import and export log definitions, expand or collapse the Logging Details panel and refresh the log definitions list.


Logging contextual menu in the main panel

UI Option

Description

Edit

Edits the cell in which the contextual menu has been opened (where the user right-clicked).

New

Creates new log definition.

Delete

Deletes the selected log definition.

Export

Exports the current log definitions in an XML format.

Import

Imports log definitions from an XML file.

Condition Details

Expands/collapses the Logging Details panel.

Refresh

Reloads the list of log definition.

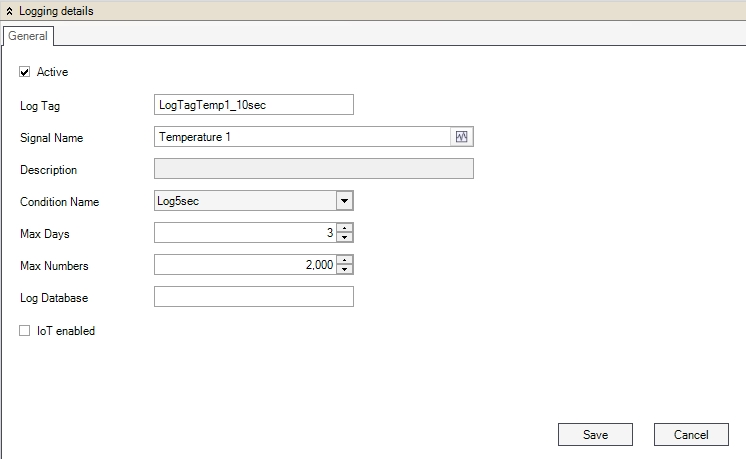

The Logging Details panel is expanded by default when selecting the Logging section in the Logging tree menu. It provides quick access to the selected log definitions settings. This panel provides the same functionality as the main panel.


Logging Details panel

UI Option

Description

Active

Activate/deactivate the log definition.

Log Tag

The signal for which the value will be logged.

Signal Name

The signal for which the value will be logged.

Description

The description of the log definition.

Condition Name

The condition that needs to be met in order to log the signal value. See Log Conditions for more details.

Max Days

The maximum number of days for storing the logged data (a ring buffer and/or the FIFO principle)

Max Number

The maximum number of saved data (a ring buffer and/or the FIFO principle)

Log Database

The name of the database for storing logged data:

  • No name: The logged data is saved in the default database.

  • Name: The logged data is saved in a separate “Name” database.

The changes will be saved upon pressing the Save button.
